Web guiding
Printed-web position control
A KRD EPC-A12 controller installed beside a printed-web roller section, with sensing hardware positioned at the material path.
KRD EPC-A12 web guide controller
View applicationApplication Examples
KRD products in customer equipment
Explore web guiding, sensing and tension-control products in customer equipment through real installation photographs, short silent videos and related product information.
7 examples
Tension control
Automatic tension control in a multi-roller web section
White web runs through the roller section beside a cabinet-mounted KRD automatic tension controller. See the roller path, cabinet position and control interface.
KRD automatic tension controller
View application
Camera sensing
HCCD camera sensing beside a printed line
A KRD HCCD camera sensor mounted beside a printed-web line, with its integrated display and a KRD EPC-A12 controller shown in the same installation.
KRD HCCD camera sensorKRD EPC-A12 web guide controller
View application
Web guiding

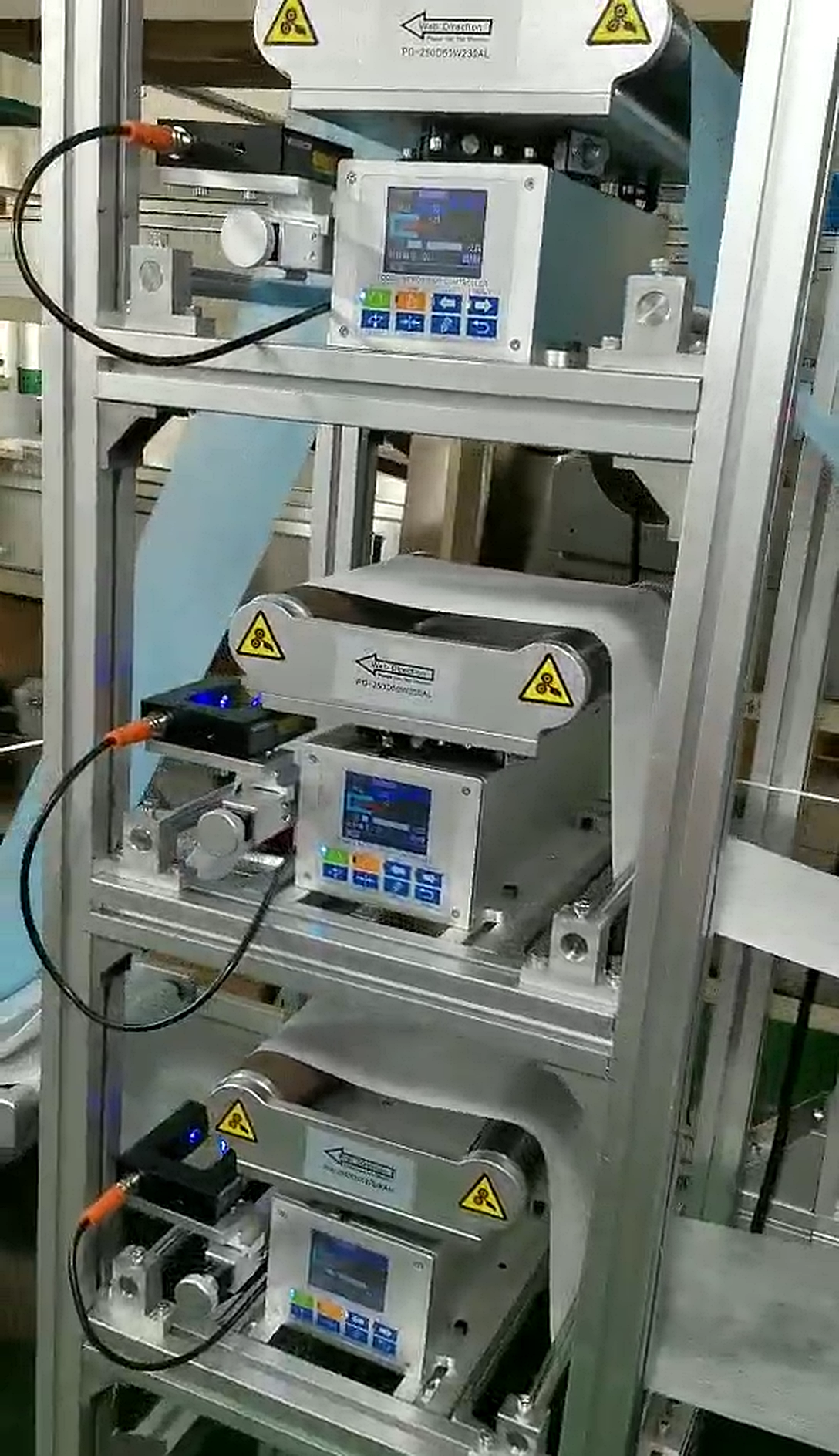

Local KRD controls in stacked guide stations
KRD position controllers sit beside vertically stacked guide units, with blue and white webs routed through the local guiding arrangement.
KRD edge/line position controllers
View application
Web guiding

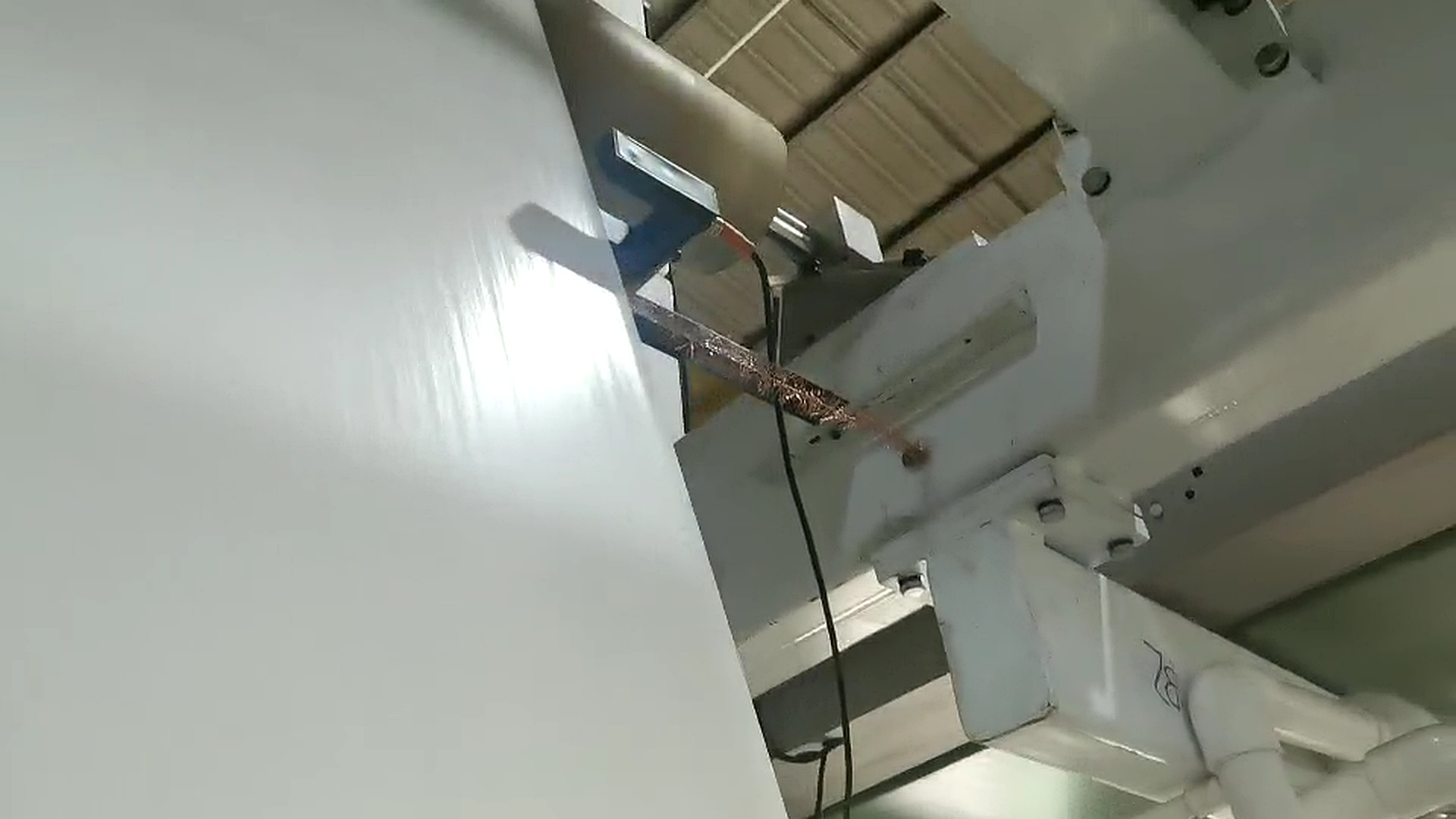

EPC-A10 web guiding at an elevated roller section
This customer installation combines an elevated roller path, sensing hardware beside the web edge and a cabinet-mounted KRD EPC-A10 controller.
KRD EPC-A10 web guide controller
View application
Web guiding

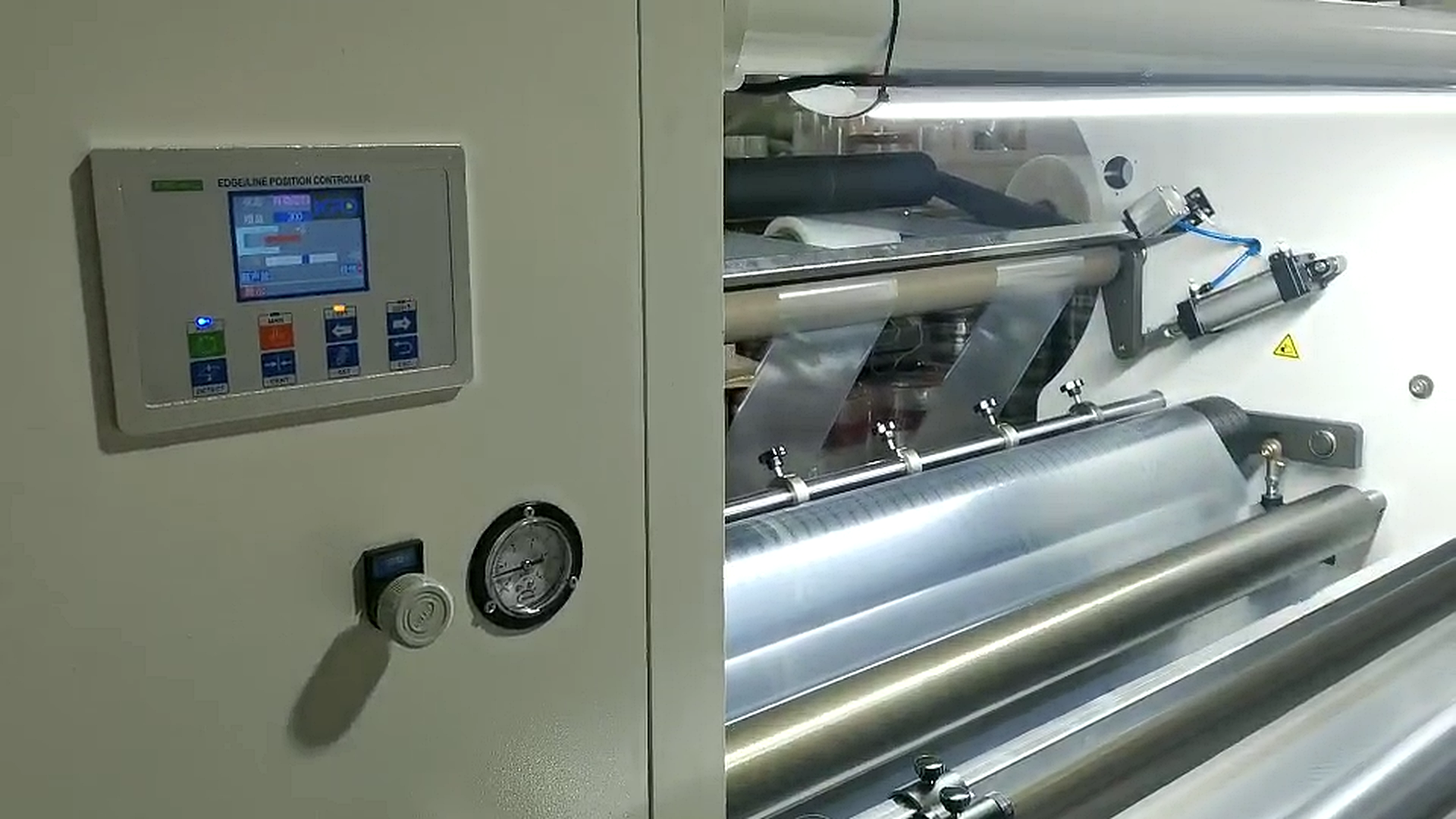

Position control along a reflective-web path
A KRD EPC-A12 mounted beside the roller path connects the application view to the controller location and web-edge sensing hardware.
KRD EPC-A12 web guide controller
View application
Ultrasonic sensing

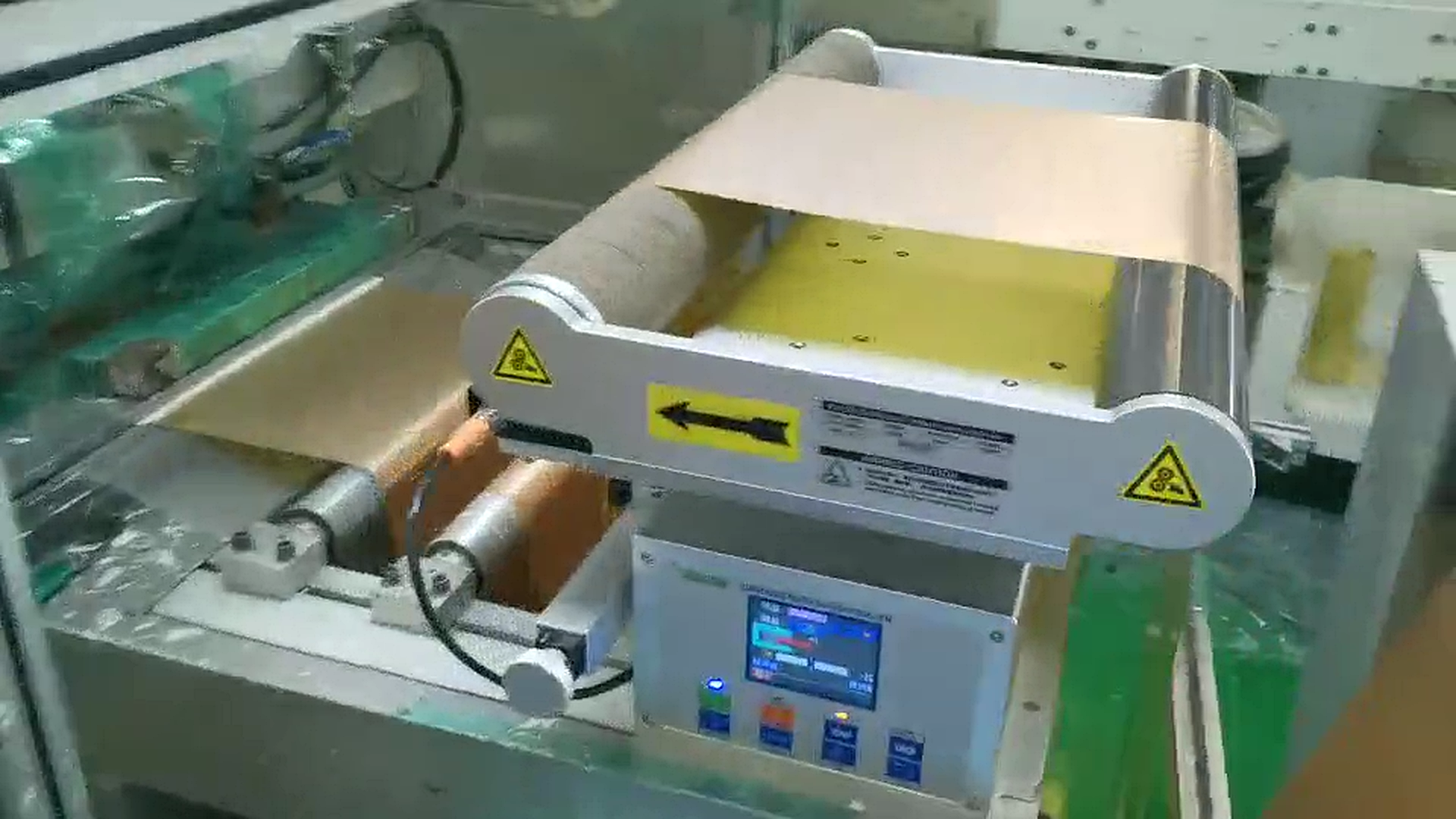

Ultrasonic sensing in a compact web-guide installation
A KRD ultrasonic edge sensor and edge/line position controller are installed around a compact guide assembly carrying a bronze-coloured patterned web.
KRD ultrasonic edge sensorKRD edge/line position controller
View application
