Application Example

Printed-web position control

A KRD EPC-A12 controller installed beside a printed-web roller section, with sensing hardware positioned at the material path.

Printed web passes through the roller section; closer views show the sensing position and the cabinet-mounted EPC-A12 controller.

Open video file ↗

In this installation

Application: Printed material through parallel rollers
Installed KRD products: KRD EPC-A12 web guide controllerLocal interface for web-position control
Installation arrangement: Cabinet-mounted controller · sensing point above the web

Discuss Your Application

A closer look at the equipment

Material path, installed components and mounting details.

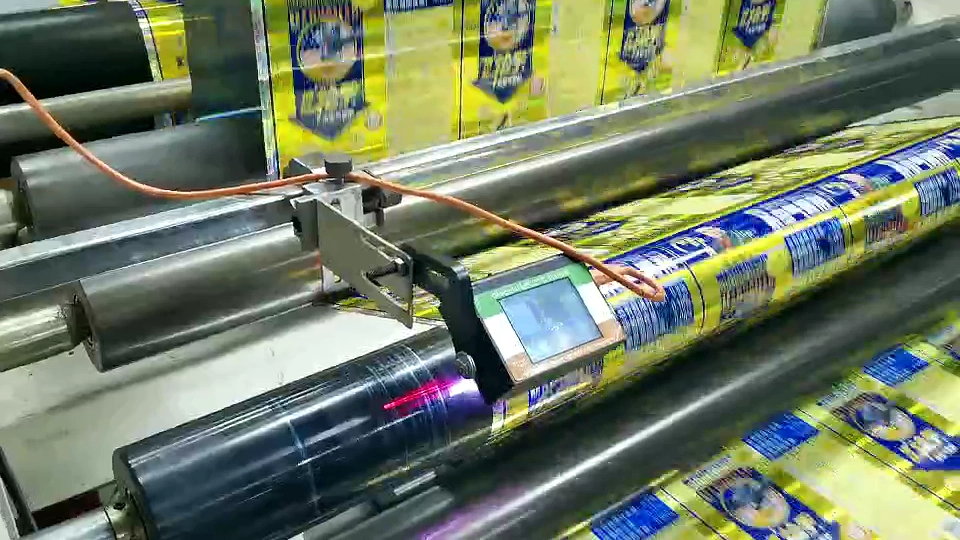

Printed web passing through parallel rollers beside a mounted sensing unit and local display — Application: printed material passing the sensing point within the roller section.
Enlarge image

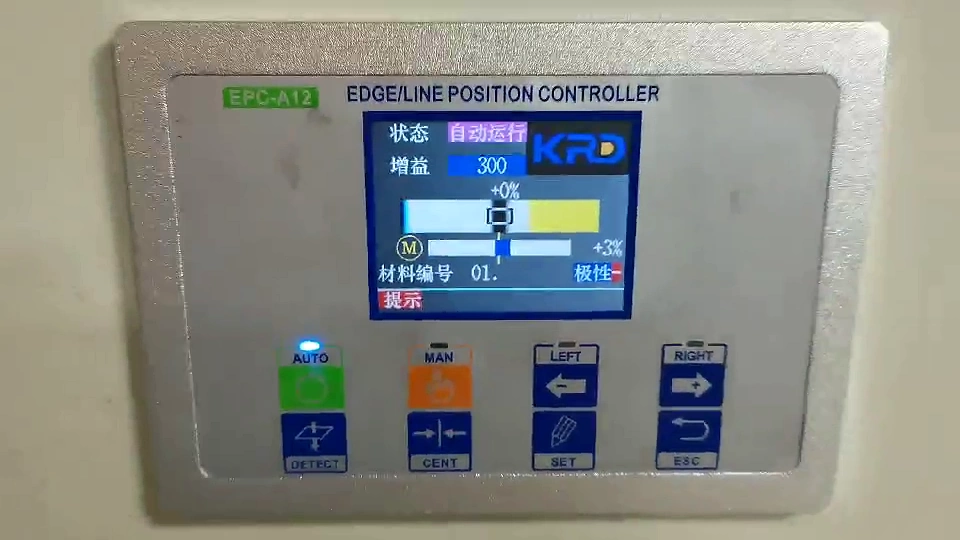

KRD EPC-A12 edge and line position controller installed on a cabinet beside the machine — Installed product: KRD EPC-A12 controller in the machine-side cabinet.
Enlarge image

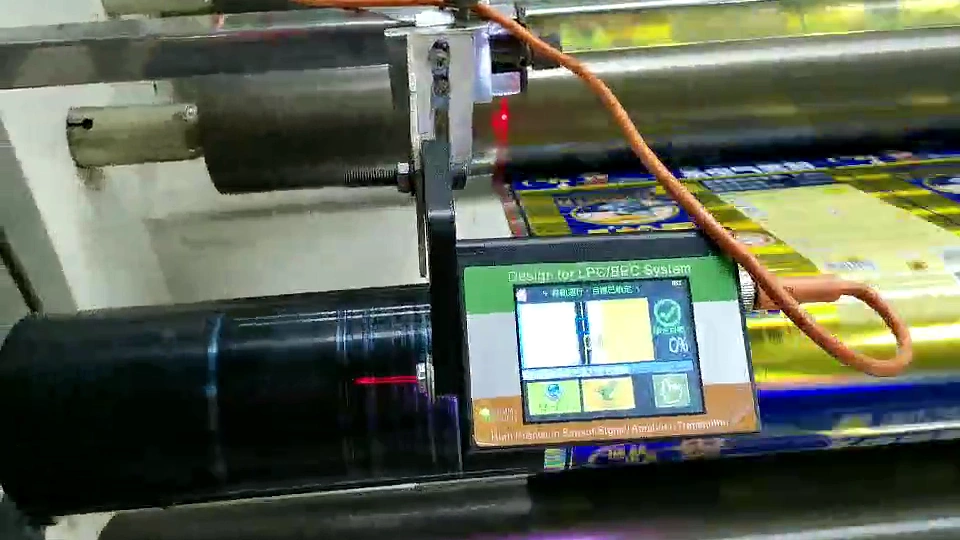

Sensor mounting bracket and local display positioned above a printed web on a roller — Installation detail: sensor mounting above the printed-web path.
Enlarge image

The application

Printed material passes through a series of parallel rollers in this customer machine. A sensing unit and local display are mounted above the material, placing the sensing point directly at the printed-web path.

KRD in the machine

The KRD EPC-A12 is installed in the machine-side cabinet. As the web-guiding controller, it provides the local interface for position-control setup and operation. The installation combines a cabinet-mounted interface with a sensing location close to the material.

Installation layout

The overall view places the sensing unit within the roller section. The controller view identifies the installed KRD product, while the final detail shows the sensor bracket and its position relative to the printed web.
