Web guiding
Printed-web position control
A KRD EPC-A12 controller installed beside a printed-web roller section, with sensing hardware positioned at the material path.
View applicationIndustrial Applications
Web Guiding and Tension Control for Roll-to-Roll Manufacturing
KRD Automation supports converting lines where web position, tension stability and winding quality directly affect output, scrap rate and process repeatability.
Application matching inputs
Material
Line Speed
Web Width
Control Zone
Sensor Target
Machine Space
Application Examples
See KRD products in customer equipment
Real installation photographs and short videos show the material path, KRD components and mounting arrangement.
Camera sensing

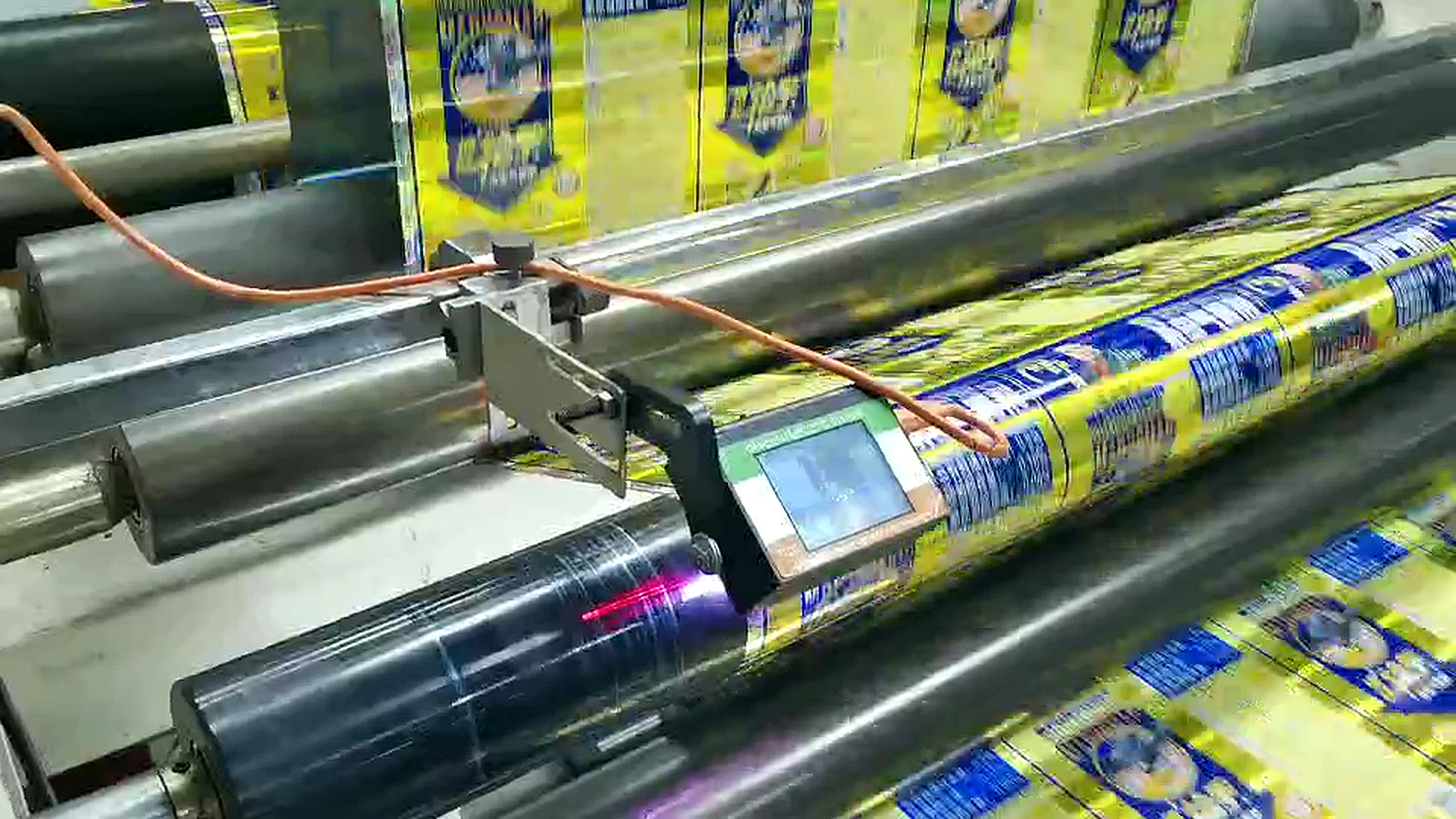

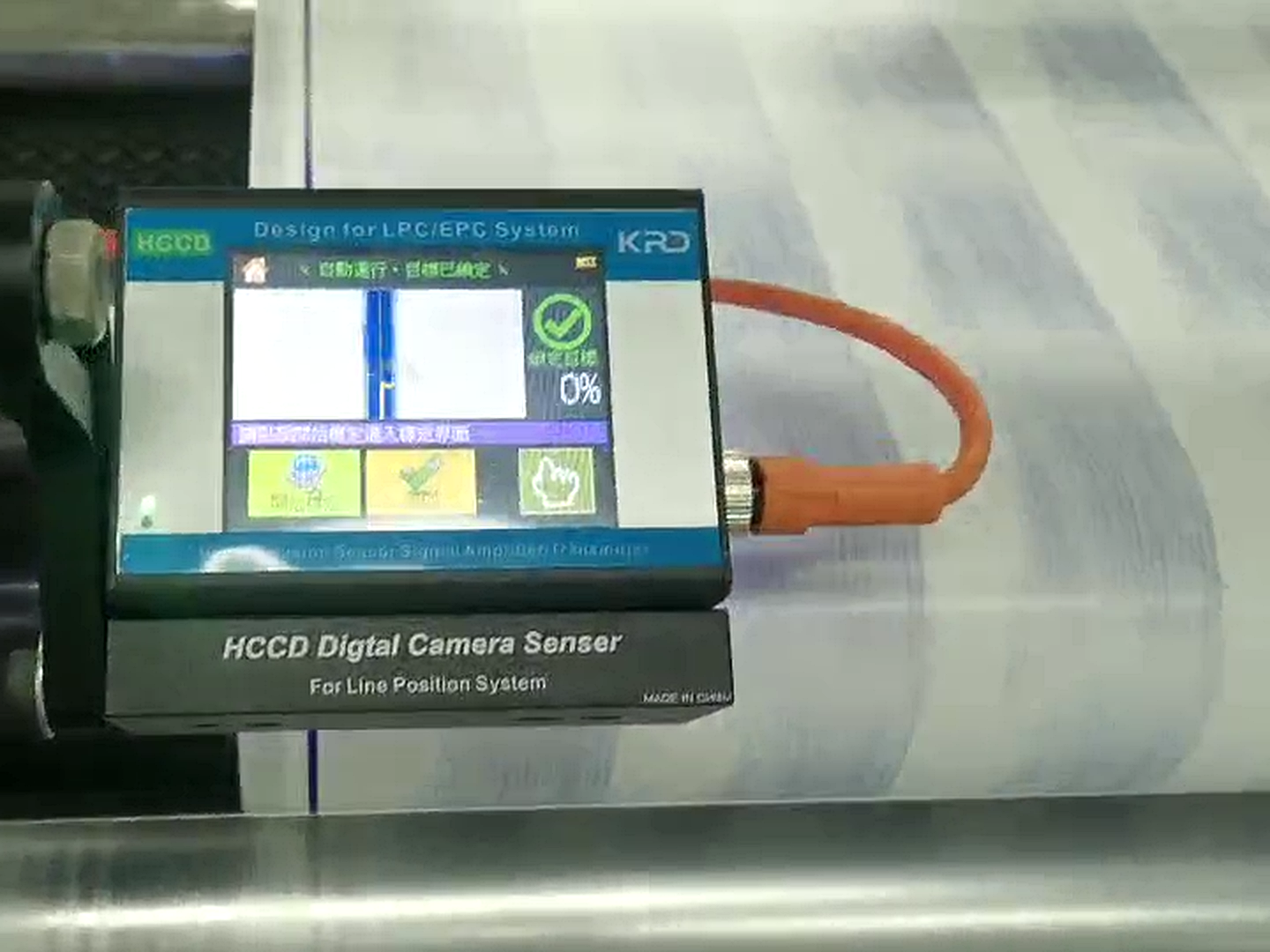

HCCD camera sensing beside a printed line
A KRD HCCD camera sensor mounted beside a printed-web line, with its integrated display and a KRD EPC-A12 controller shown in the same installation.
View application
Tension control

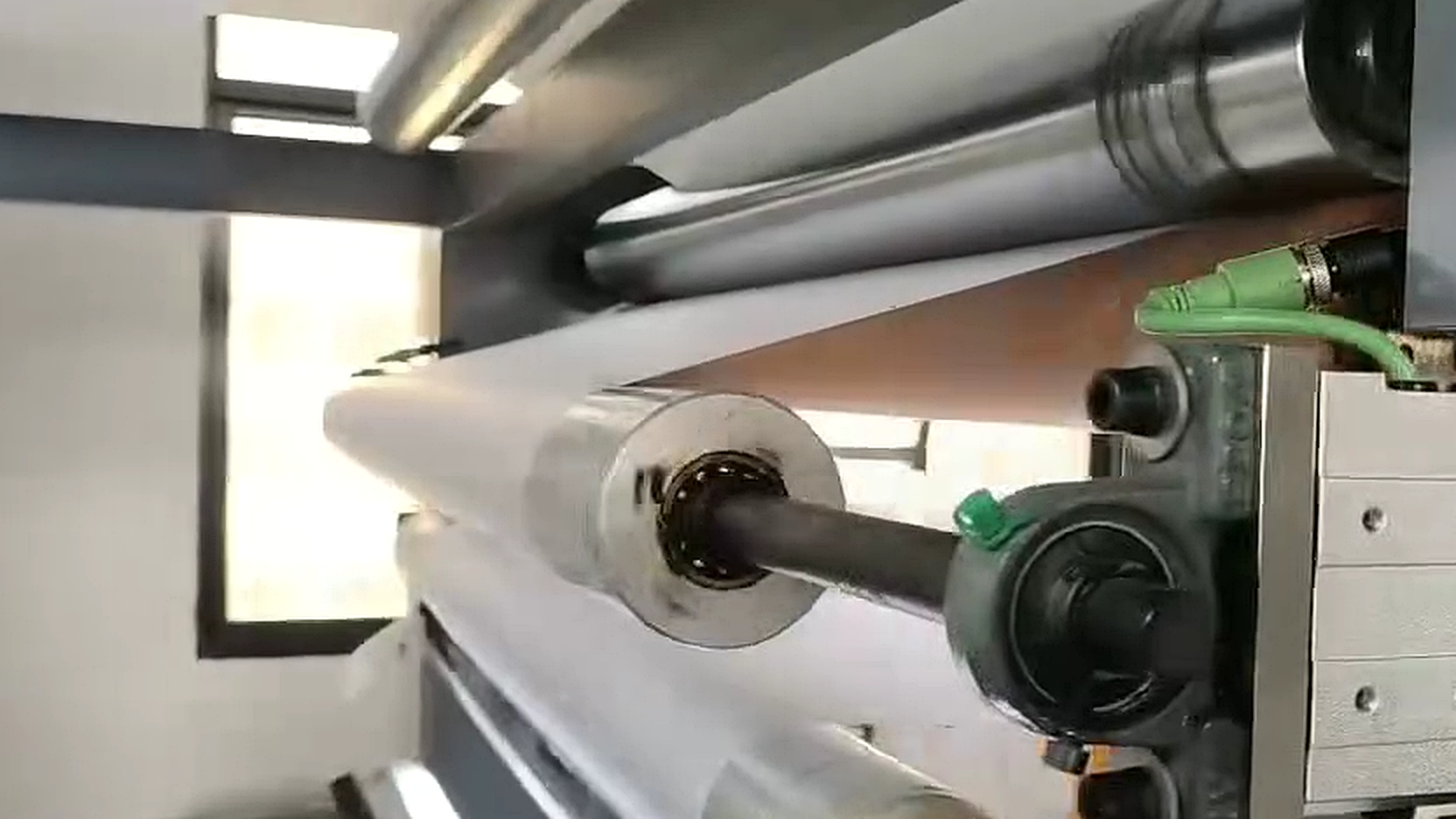

Automatic tension control in a multi-roller web section
White web runs through the roller section beside a cabinet-mounted KRD automatic tension controller. See the roller path, cabinet position and control interface.
View applicationTypical Application Areas
Match the solution to the process environment
These are typical application scenarios, not records of delivered customer projects. Material behavior, sensor requirements and control-zone priorities vary by application.

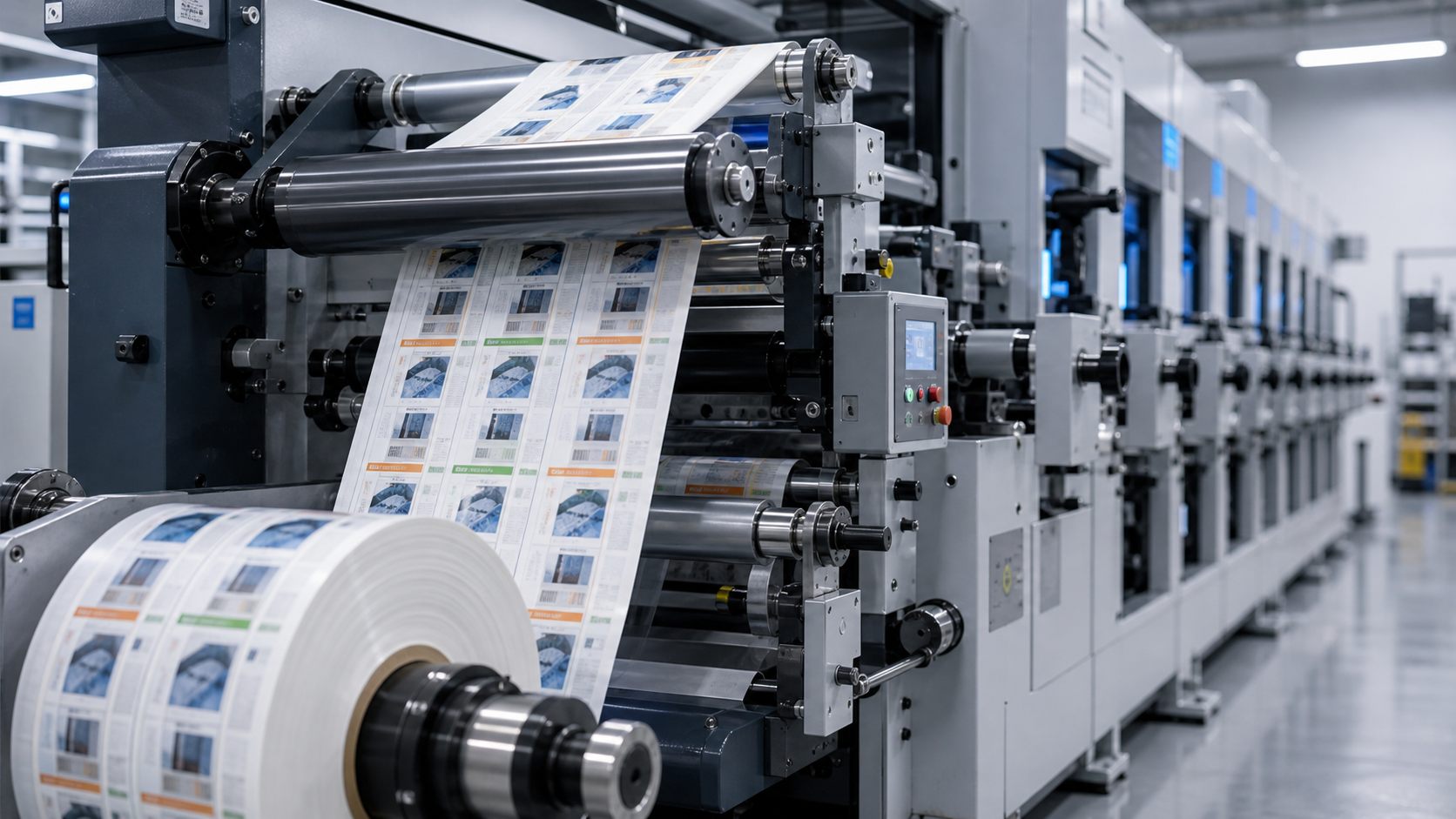

Printing & Labels
Registration and edge-position stability
Web guiding and tension control help stabilize label, flexible packaging and converting presses.
View printing solution

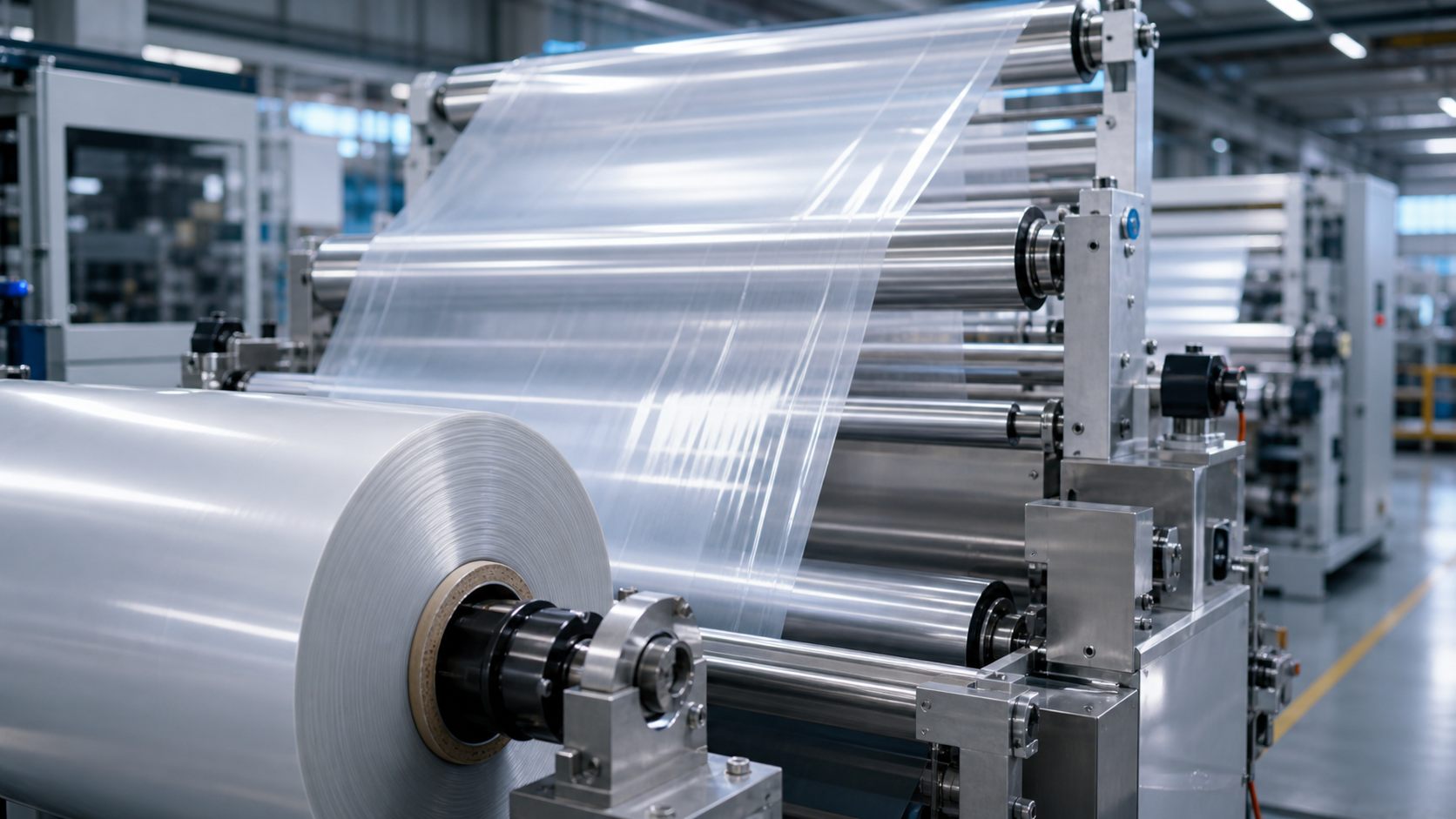

Packaging & Film
Stable control for flexible webs
Support slitting, laminating, coating, rewinding and film handling lines where alignment and tension are critical.
View packaging solution

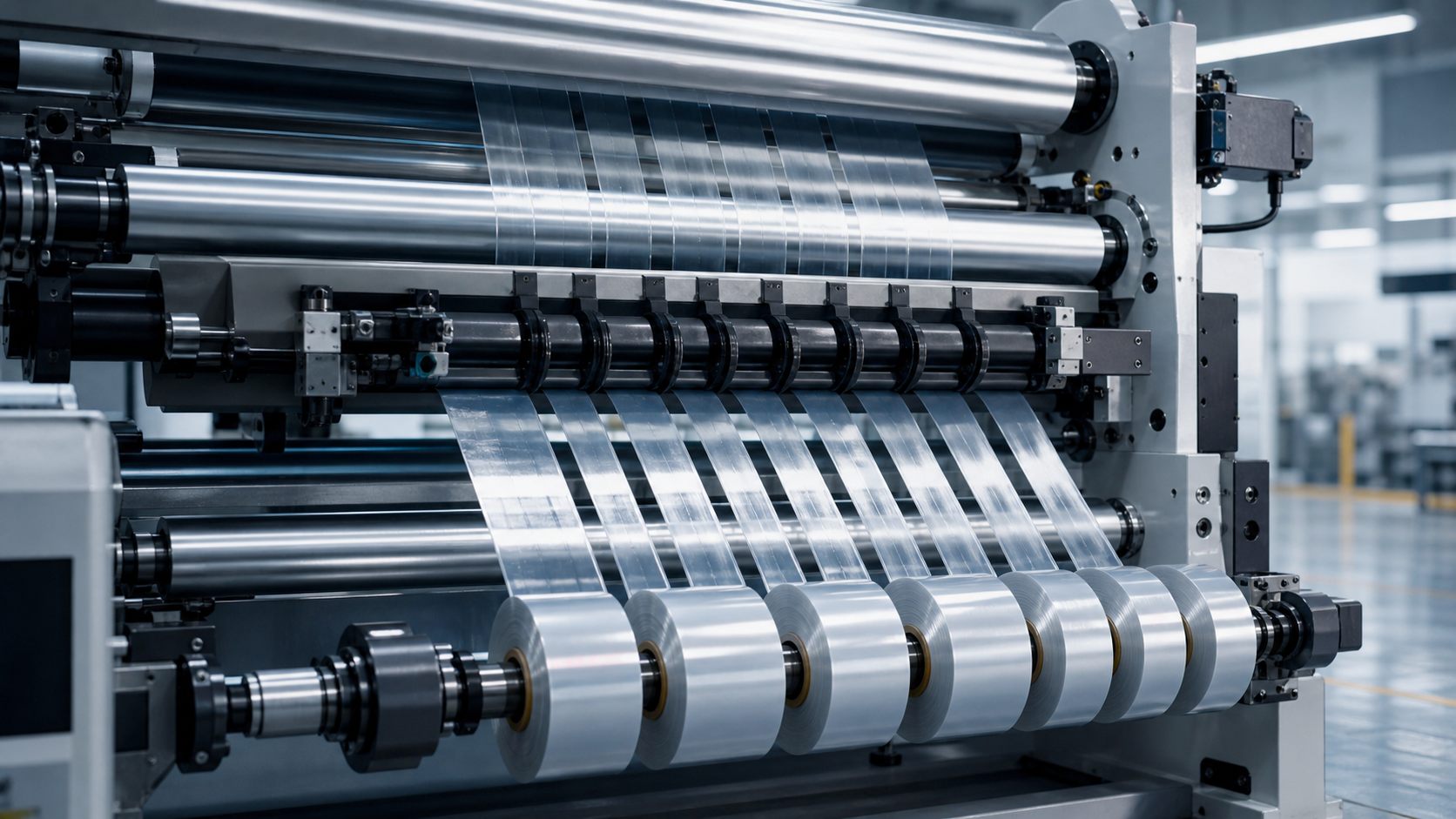

Slitting & Rewinding
Cleaner rolls and consistent web tension
Tension control improves slit quality, roll hardness and rewind consistency through changing roll diameter.
View slitting solution

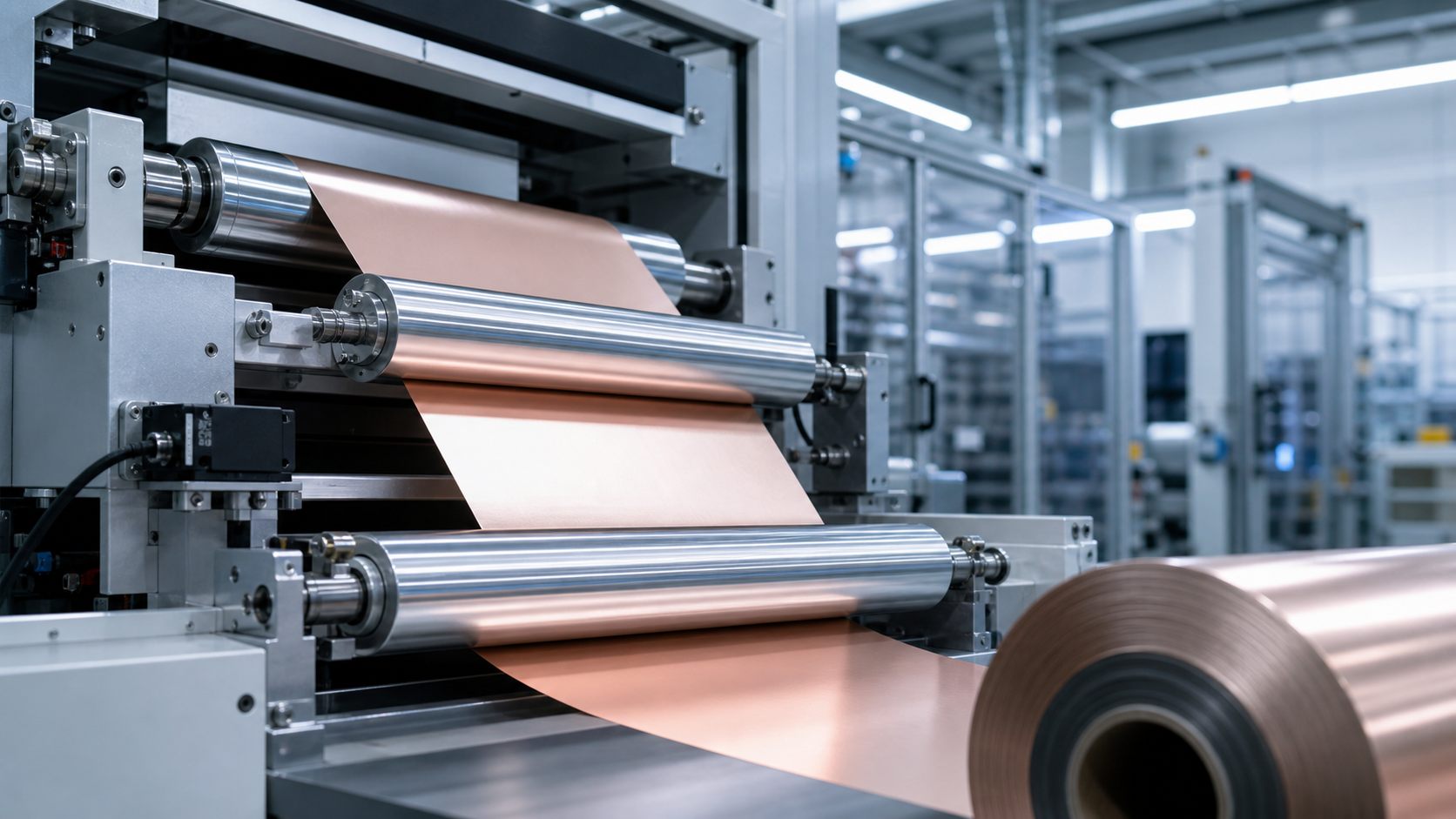

Lithium Battery Materials
Precision web handling for electrode materials
Support coating, calendering, slitting and winding processes where thin materials require stable tension and alignment.
View battery solution

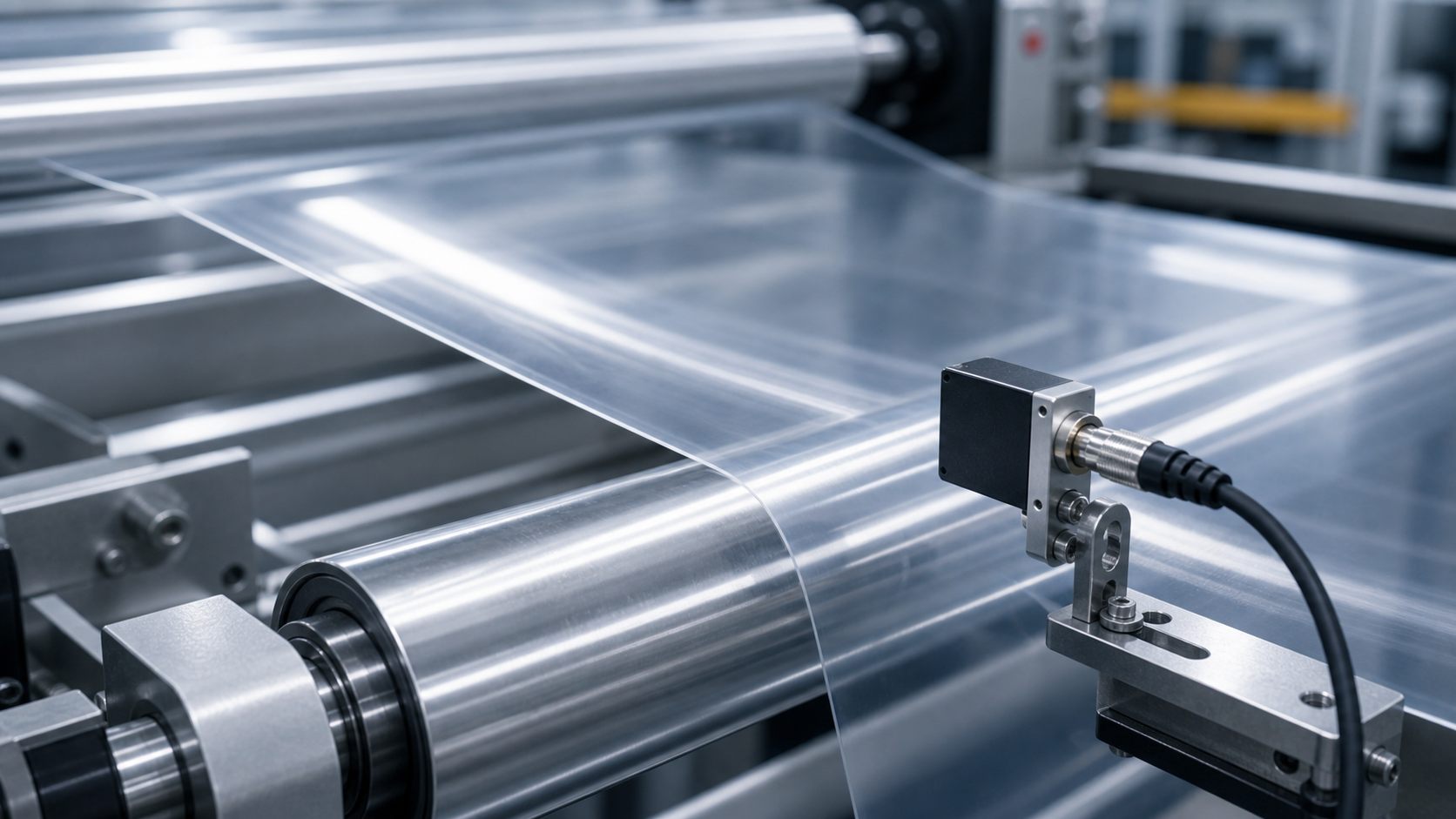

Film & Flexible Webs
Sensor selection for low-contrast materials
Match ultrasonic, photoelectric and integrated web guiding systems to transparent film, foil and flexible web materials.
View film solutionWeb drift, wrinkles or winding defects
Controller, sensor and actuator selection
Machine-specific configuration support
Application Matching
Start with the material and control challenge
Answer four short questions to see a practical application direction before you enter the product catalog or request a configuration review.
Recommended Product Paths
Choose by control objective
Tension Control System
Controllers, load cells, amplifiers, magnetic powder brakes and clutches for stable web tension.
View Tension Products
Web Guiding System
EPC controllers, sensors, linear actuators and integrated web guide units for web alignment.
View Web Guiding Products

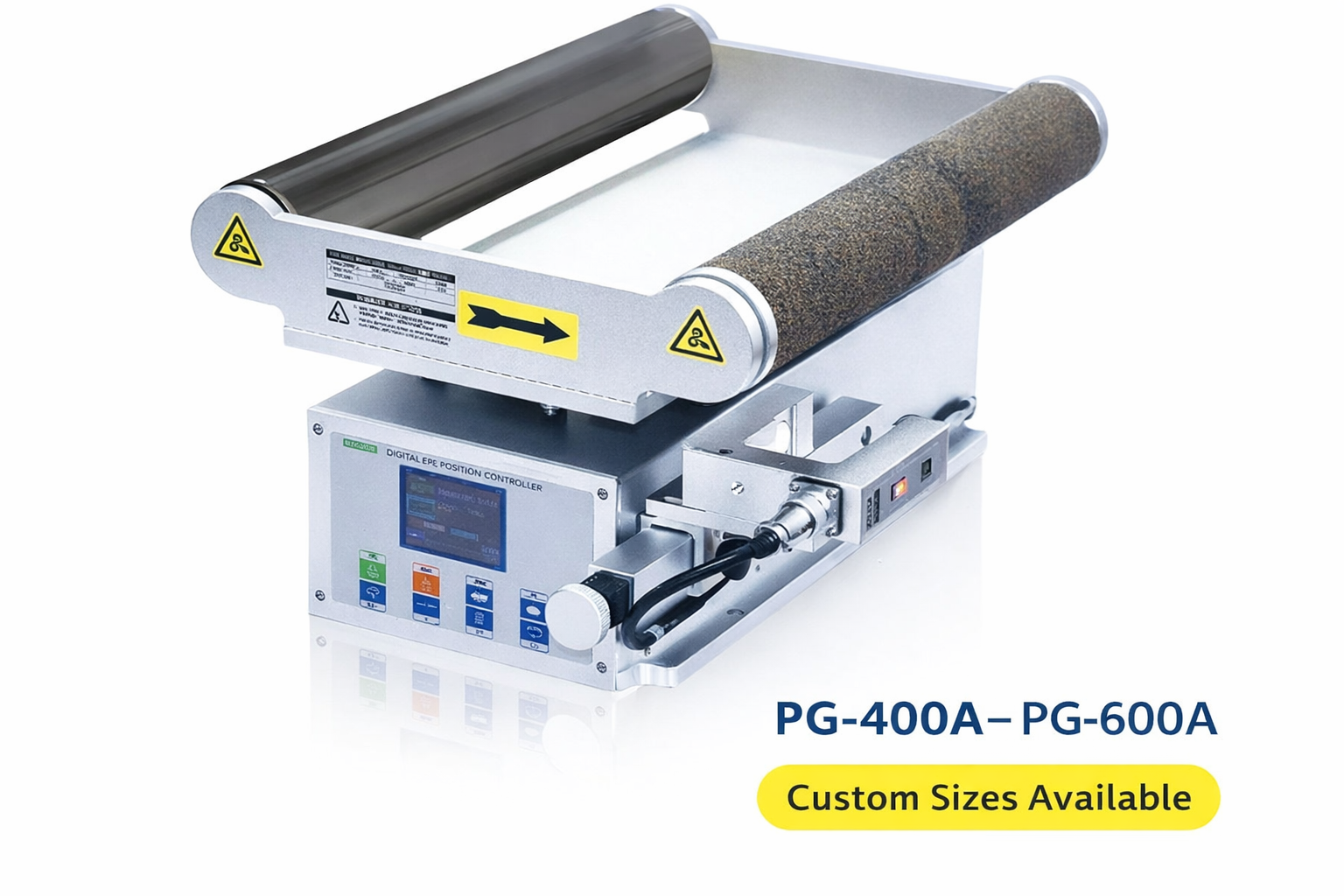

Integrated EPC Units
Compact guide assemblies for fast installation and machine-specific EPC integration.
View Integrated UnitsApplication Support
Contact KRD Automation for a customized solution
Tell us your industry, material type, machine section and control challenge. Our team will help match the right web guiding or tension control solution.
Application Engineering
How KRD matches web handling controls to industrial applications
Different roll-to-roll processes require different control priorities. Flexible packaging lines often focus on registration and edge quality. Film and foil processes require stable low-tension handling. Slitting and rewinding equipment needs repeatable roll build quality. Lithium battery electrode production requires precise web tension and alignment to protect coating quality and downstream yield.
Printing and packaging
Edge guiding and tension control improve registration, reduce trim waste and stabilize substrate movement through print, lamination and finishing sections.
Film, foil and nonwoven
Low-tension control and sensor selection help protect sensitive webs that can stretch, wrinkle or lose edge definition at higher speeds.
Battery materials
Electrode coating, calendering, slitting and rewinding benefit from stable tension, accurate web tracking and predictable correction response.
Prepare for an application review
Start with your process stage, material and current control problem. Review the related product families to identify a direction for printing, packaging, film, foil, nonwoven, slitting, rewinding or battery material production.
Share the operating conditions you know and mark the rest as unconfirmed. Final product suitability, configuration and quotation require review of the actual machine and material requirements.
