Application Example
HCCD camera sensing beside a printed line
A KRD HCCD camera sensor mounted beside a printed-web line, with its integrated display and a KRD EPC-A12 controller shown in the same installation.
The close view shows the KRD HCCD camera and its display beside a longitudinal printed line over a roller.
Open video file ↗In this installation
- Application
- Printed web with a longitudinal line over a roller
- Installed KRD products
- KRD HCCD camera sensorCamera-based line-position sensing at the material path
- KRD EPC-A12 web guide controllerLocal edge/line position-control interface
- Installation arrangement
- HCCD camera at the printed line · EPC-A12 local control interface
A closer look at the equipment
Material path, installed components and mounting details.
Enlarge image
Enlarge image
Enlarge image

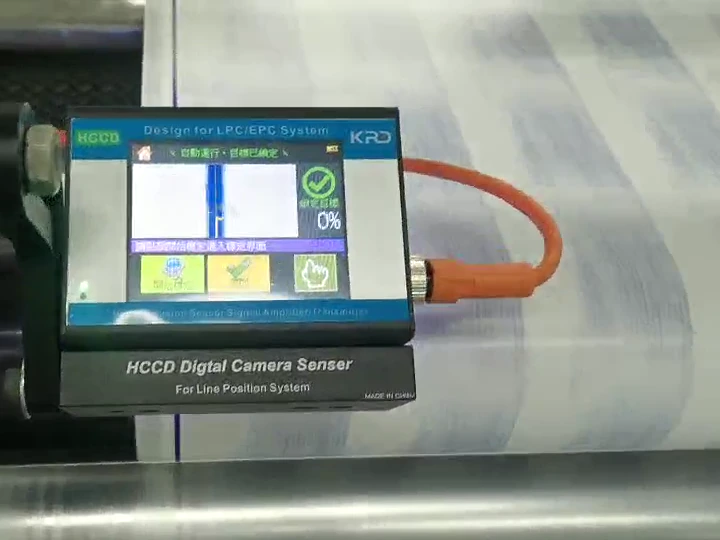

The printed line and camera
A repeated-pattern web runs over a roller with a blue longitudinal line visible beside the pattern. A KRD HCCD camera sensor is mounted above this part of the material path.

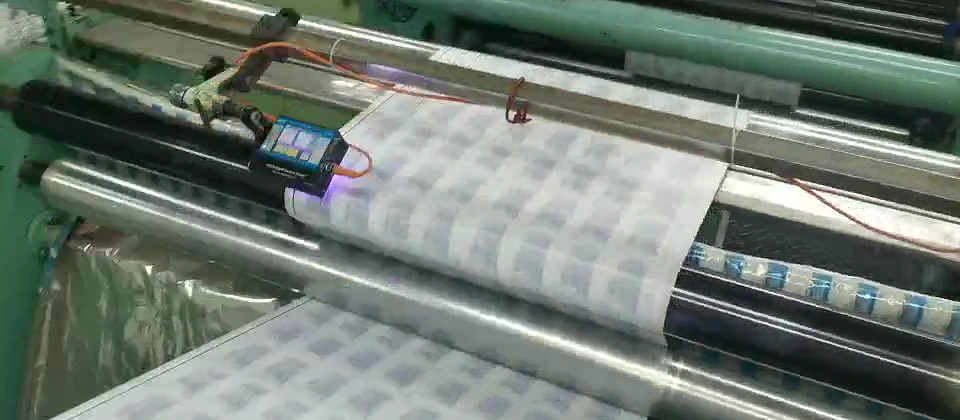

Camera within the roller path
The unit combines the sensing position with an integrated display showing a line target. Its housing identifies the HCCD camera sensor and KRD brand. The close view preserves the printed line, sensor mounting and roller relationship.

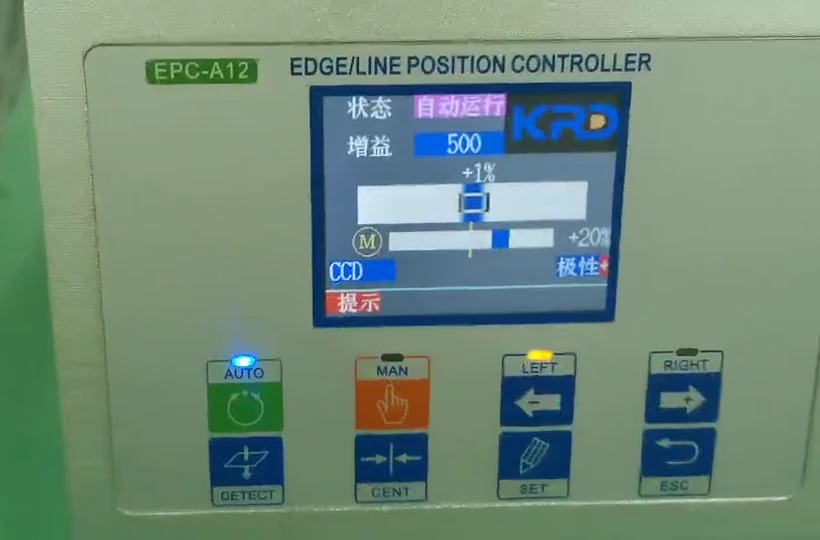

The local position controller
A KRD EPC-A12 edge/line position controller is shown elsewhere on the same machine, with CCD text visible on its interface. The wider installation image locates the camera within the roller section.
