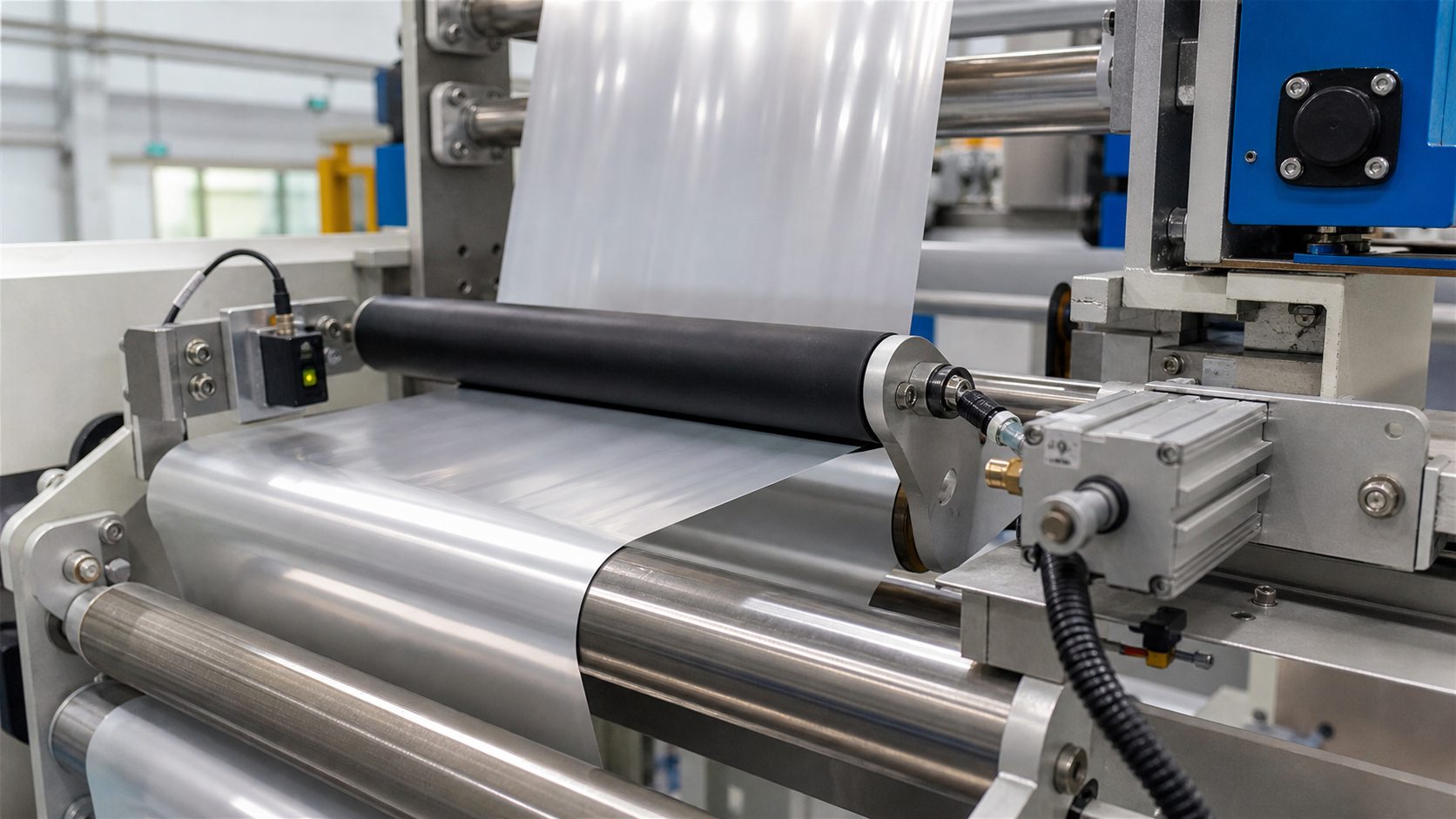

Controller guide-response specification. Mechanical correction depends on the actuator, guide layout and operating conditions.
View EPC-A12 specificationsWeb Guiding / EPC Solutions
Keep Moving Webs Aligned at Production Speed
KRD web guiding systems combine controllers, sensors, actuators and integrated EPC units to reduce edge waste, tracking errors and downstream process variation.
Support for film, paper, foil and printed materials.

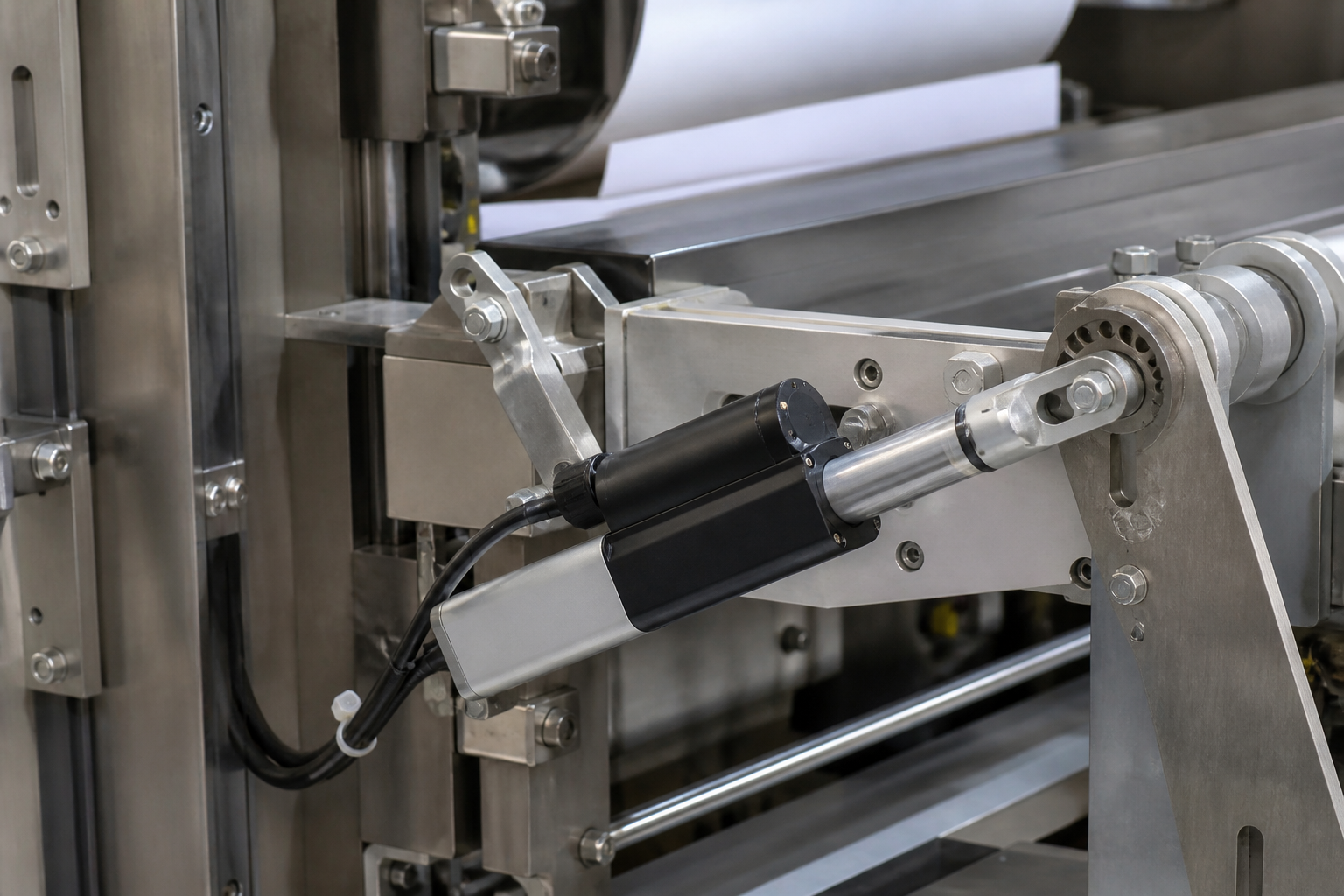

Servo linear actuators for precision positioning.
Compact assemblies for faster installation.
In Customer Equipment
See where the controller and sensor fit
Explore real installations through photographs, short videos and related product details.
Installation photos + video
EPC-A12
Position control beside the printed web
A cabinet-mounted EPC-A12 sits beside the roller section, with sensing hardware positioned at the material path. See the controller location and surrounding equipment.
View EPC-A12 installation
Installation photos + video
HCCD + EPC-A12
Sensing a printed line within the roller path
An HCCD camera sensor is mounted beside a longitudinal printed line. The same machine also shows an EPC-A12 controller with CCD text on its display.
View printed-line installationHow the System Responds
Follow the correction path from web signal to aligned material
Select a stage to see how sensing, control and actuation work together before the web reaches the next process section.
Choose Your Sensing Reference
Start with the material and the feature you need to follow
Material transparency and the choice of an edge or printed-line reference help narrow the sensor selection.
Transparent film · Edge reference
Ultrasonic sensing
Consider US-500S for transparent films or low optical contrast. Confirm the material sample, sensing gap and mounting space.
Explore US-500SOpaque material · Edge reference
Photoelectric sensing
Consider PS-400S for standard opaque web materials. Review edge contrast, surface reflections and the sensor position with your material sample.
Explore PS-400SPrinted line · Visual reference
Camera and line sensing
Explore HCCD when the reference is a printed line. Confirm line contrast, working distance and the controller interface for your application.
Explore HCCDNot sure which reference is suitable? Share what you know about the material and machine; incomplete technical details are welcome.
Product Fit
Core web guiding products
EPC-A12
Touchscreen web guiding controller for upgraded interface and parameter management.
PS-400S
Photoelectric edge-position sensor for standard opaque web materials.
US-500S
Ultrasonic sensor for transparent films and materials with low optical contrast.
PG / PM
Integrated guide units for compact EPC installation and machine-specific integration.
Selection Inputs
Send material and machine details for faster EPC selection
For a web guiding inquiry, include material type, web width, sensor target, guide position, actuator stroke and available installation space.
Material type and whether it is transparent, reflective or printed.
Guiding mode: edge, center, line, mark or width measurement.
Required stroke, web width and installation envelope.
Engineering Support
Contact KRD Automation for a customized web guiding solution
Our team can help match controller, sensor, actuator and integrated EPC units for your equipment.
