Which materials are suitable for PS-400S?
PS-400S is intended for edge tracking on opaque and qualified transparent film with a stable optical edge. Confirm the actual material with calibration or a sample test.
PS-400S
Product Image
Product Introduction
PS-400S is a visible-light through-beam web guide sensor designed for edge-tracking applications.
Key Features
- Supports analog and switch output
- Suitable for opaque and transparent film edge-tracking applications
- Visible-light through-beam detection
- 100K carrier coding resists ambient light interference
- Detection range 5 mm with precision up to 0.02 mm
- High stability and high precision
Technical Parameters
Tracking Mode
Edge tracking
Power Input
DC 10-30V
Output Signal
Analog 0-5V + dual NPN switch outputs
Detection Range
8 mm (+/-4 mm)
Adjustable Precision
+/-0.02 mm
Detection Method
Photoelectric through-beam
Carrier / Response Frequency
100 KHz / 1 KHz
Protection Rating
IP54
Weight
250 g
Working Environment
-10 to 80 C, RH below 90%
Housing Material
Aluminum alloy
Material Calibration
Required

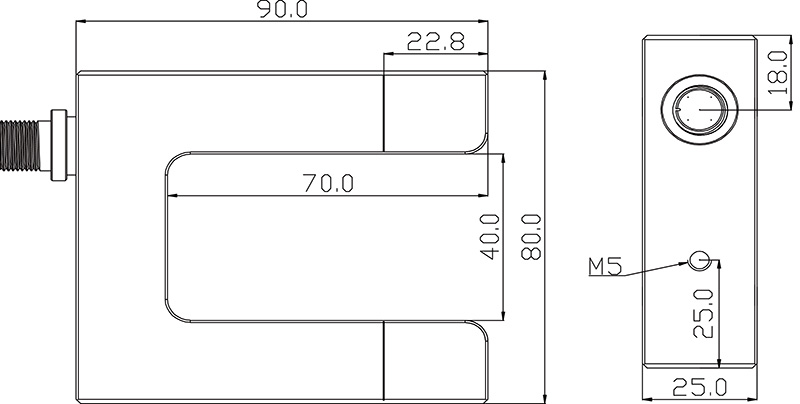

Dimensions
Unit: mm
PS-400S quick answers
Which electrical interface does PS-400S use?
The listed interface is DC 10-30V power, one 0-5V analog output and two NPN switch outputs. Confirm controller input and wiring before ordering.
What should be checked before selecting PS-400S?
Confirm material transparency and reflectivity, ambient light, contamination, calibration requirements and mounting geometry with the actual application.
