EPC-A10
Product Image
Product Introduction
EPC-A10 is a servo web guide controller for edge, line and center position control on converting lines. It adopts a high-speed 32-bit CPU with a variable PI algorithm to achieve fast response, high guiding accuracy and stable operation across a wide range of materials.
Key Features
- Supports line guiding, edge guiding and center guiding modes
- Compatible with photoelectric, ultrasonic and CCD sensors
- Smart sensor parameter detection with minimal calibration effort
- Automatic stroke measurement without mechanical limit switches
- Variable PI algorithm with anti-overshoot tuning for high precision
- Ultra-fast response speed up to 0.5 ms
- 12-bit AD sampling for analog sensor signals, up to 700,000 samples per second
- RR digital filter and hysteresis filter for stronger anti-interference performance
- DC servo motor output for ball-screw positioning systems
- Power-off memory stores all system parameters and operating status
- Stores 10 parameter groups for quick material switching
- Simplified Chinese, Traditional Chinese and English menu interface
- One-key calibration for faster commissioning
- Supports Modbus communication for PLC and HMI integration
- Comprehensive anti-disturbance design reduces static, radiation and noise interference
- Low power consumption and energy-saving operation
Technical Parameters
Model
EPC-A10
Control Mode
DC servo drive
Power Supply
DC 24V / 5A
Control Input
DC 0-5A
Control Output
Three-phase 24V, PWM
Response Speed
0.5 ms
Ambient Temperature
-10 to 60 C, RH below 90%
Weight
1.2 kg

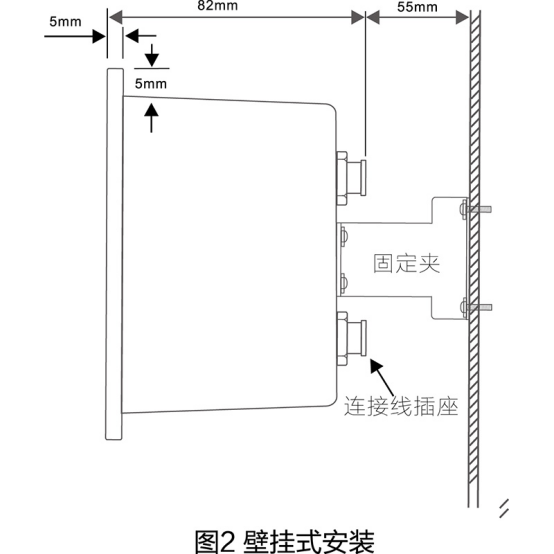

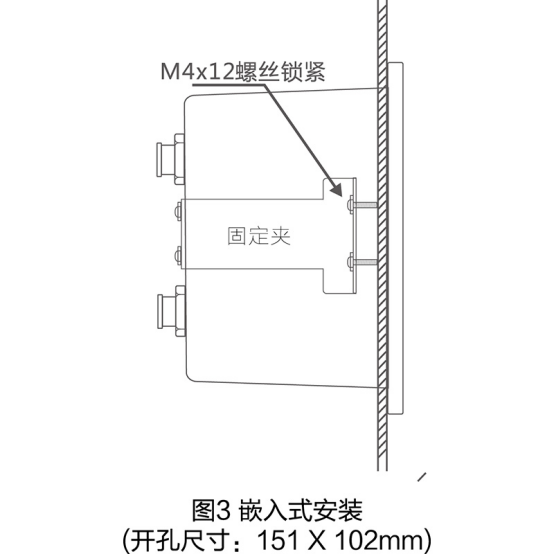

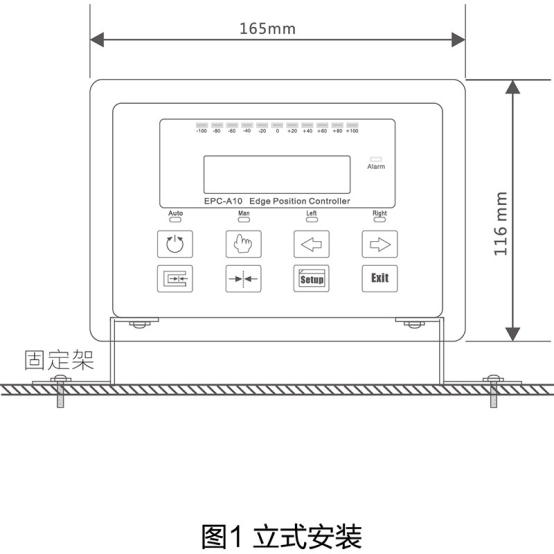

Installation Drawing
Note: All dimensions in this section are in mm.

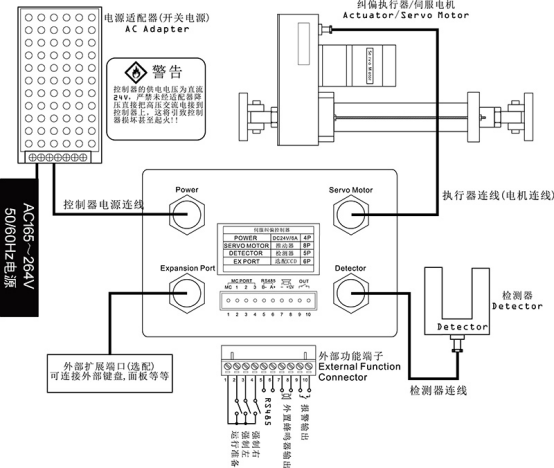

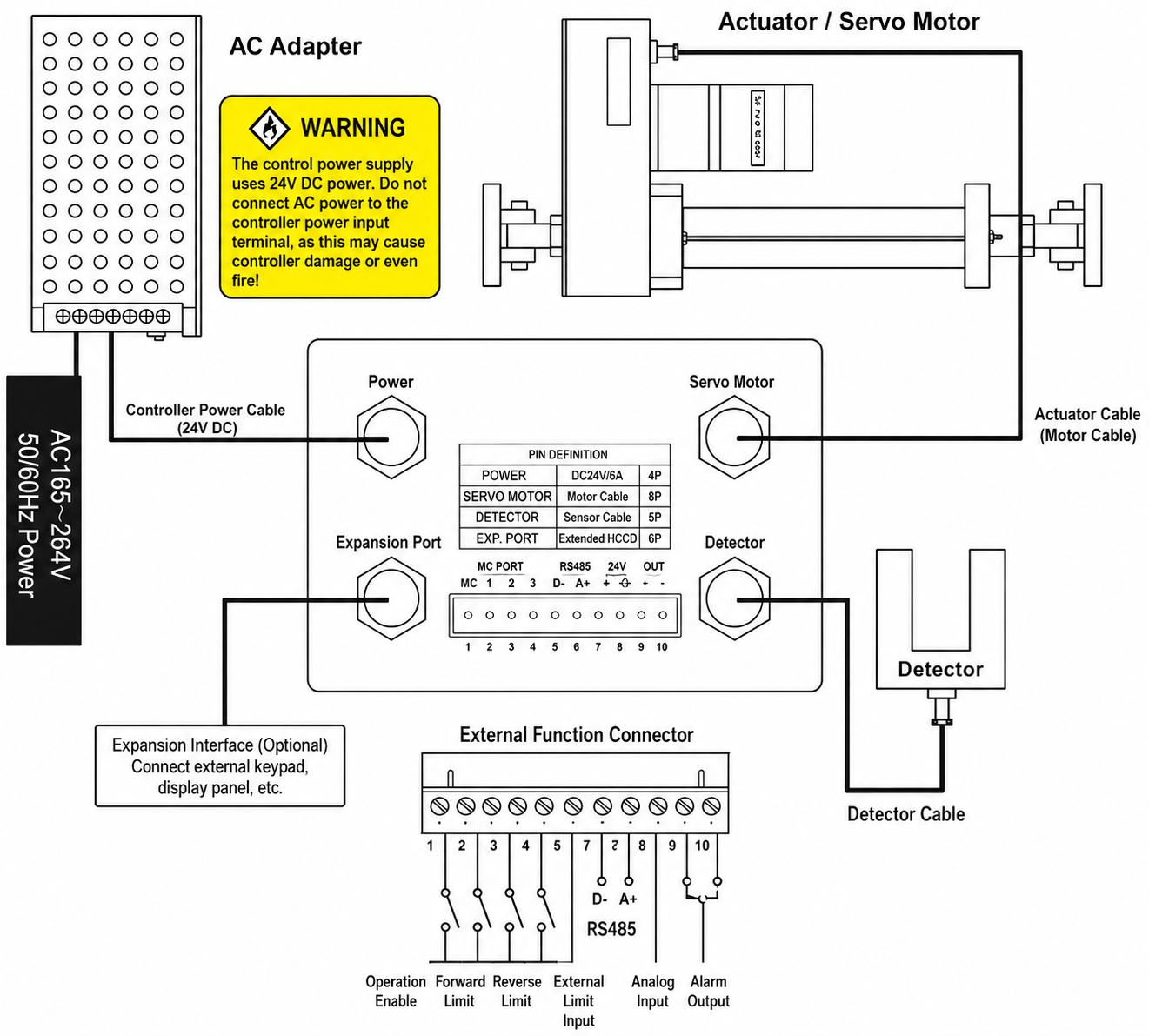

Wiring Diagram
Product Fit
Typical applications
- Edge, line and center guiding for roll-to-roll web handling equipment
- Printing, laminating, coating, slitting, inspection and rewinding sections
- Film, paper, foil, label stock and flexible packaging materials
Compatible components
EPC-A10 quick answers
Which sensor principles can be used with EPC-A10?
The page lists photoelectric, ultrasonic and CCD sensors. Confirm the exact sensor model, signal, wiring and mounting before selection.
Which actuator interface does EPC-A10 use?
EPC-A10 lists a DC 24V / 5A supply and three-phase 24V PWM control output for a compatible DC servo actuator. Confirm motor and wiring compatibility.
Request EPC-A10 configuration support
Share web width, material type, line speed, guiding mode and installation space. KRD can help match the controller with the right sensor and actuator.
