Actuator Products

Choose by function: web-guiding mechanisms move the material path sideways; magnetic powder brakes and clutches provide braking or transmit torque for tension control.

Magnetic powder brakes & clutches Web-guiding mechanisms

Tension control: braking and torque transmission

Magnetic powder brakes and clutches

Magnetic powder brakes

FZ Series

Braking torque for winding and unwinding tension-control systems. Review shaft arrangement, required torque and operating conditions.

Magnetic powder brakes

Magnetic powder clutches

FL Series

Torque transmission for winding and unwinding systems. Review the driving and driven shafts, required torque and operating conditions.

Magnetic powder clutches

Explore the tension-actuator category Get brake / clutch selection help

Web guiding: lateral position correction

Choose the mechanical arrangement

Match a linear driver or guide assembly to the available web path, correction travel and mounting space.

PD Series

Linear motion for a web-guiding mechanism. Check stroke, thrust, speed and the mechanical connection.

View Product Intro

PG Series

An intermediate guide frame with servo drive. Check guide-roller length, span and threading layout.

View Product Intro

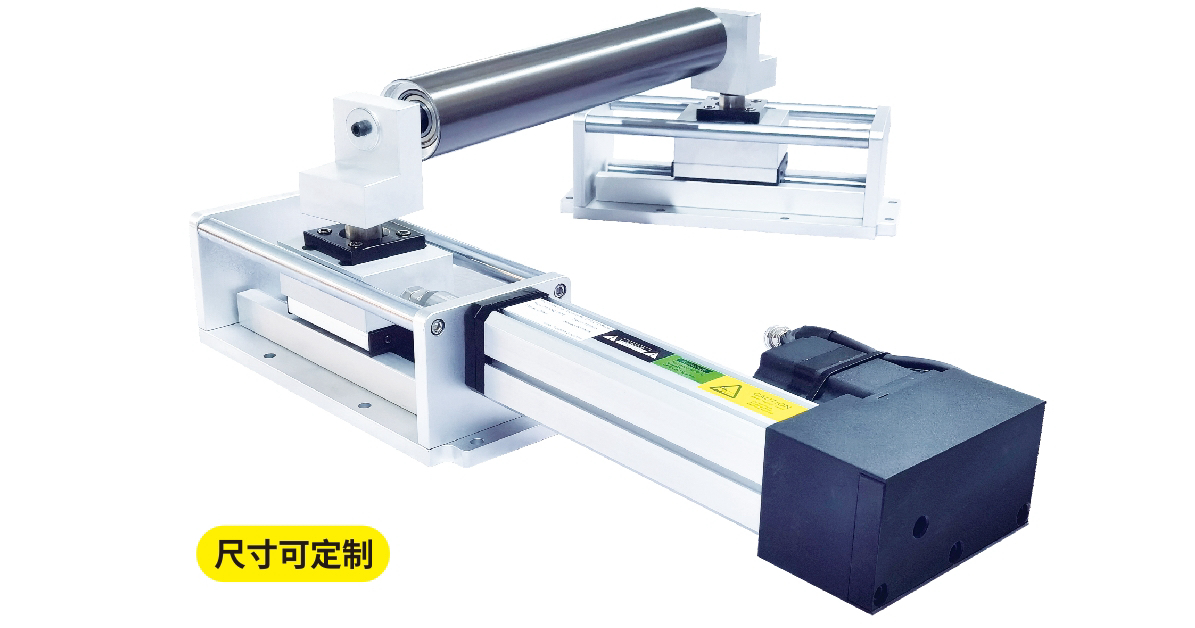

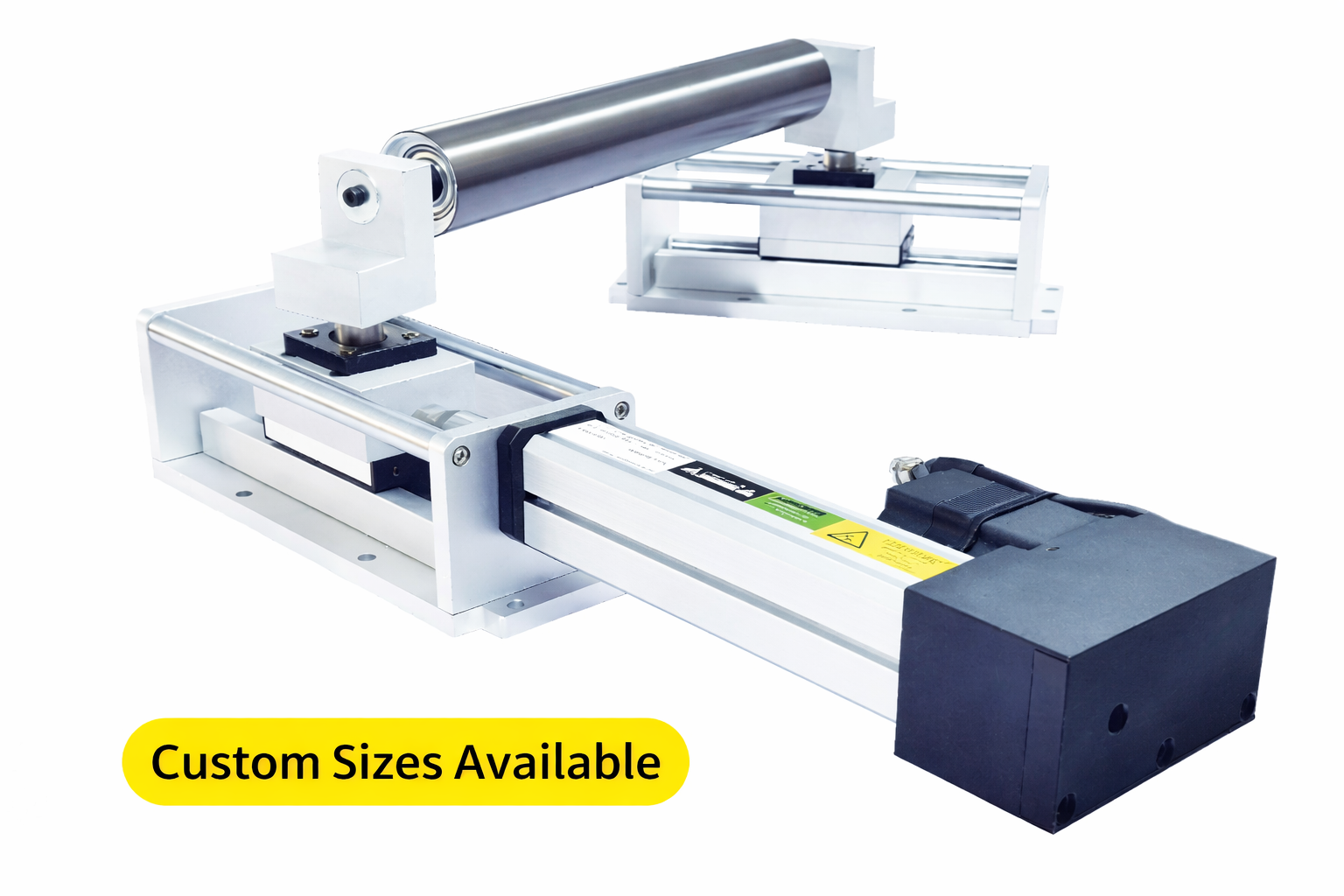

PM Series

A guide-roller correction assembly with single- or double-roller structures. Check the infeed span and matching linear driver.

View Product Intro

Compare before you enquire

Actuator comparison

Selected published features, not a performance ranking. Select a model to review its source specifications; matching values do not establish interchangeability.

On smaller screens, scroll the table horizontally. Keyboard users can focus the table region and use arrow keys.

Model / source	Type / detection method	Published feature
PD Series	servo motor linear driver	The listed configurations span 80 to 200 mm stroke and 1 to 8 kN thrust, with maximum drive speeds of 30 or 40 mm/s depending on model.
PG Series	servo motor intermediate guide frame	Guide roller length and span can be customized
PM Series	guide roller web guide actuator	supports single-roller or double-roller structures

Pairing: confirmation required

These category links are review paths, not approved model pairings. Confirm sensor supply, signal and pinout, controller input and motor output, actuator stroke, load and mounting before selecting a combination.

Controllers · Sensors · Actuators

Request a pairing review

Share the installation you need to match

For a replacement, share the existing model and installation photos. For a new machine, describe the web path or shaft arrangement and the required movement or torque. We can clarify the remaining details together.

Request actuator selection help
