What is integrated into the PG web guide unit?
The PG unit integrates the controller, driver and detector with guide rollers and a servo correction structure in one assembly.
PG-300A / PG-350A / PG-400A~PG-600A

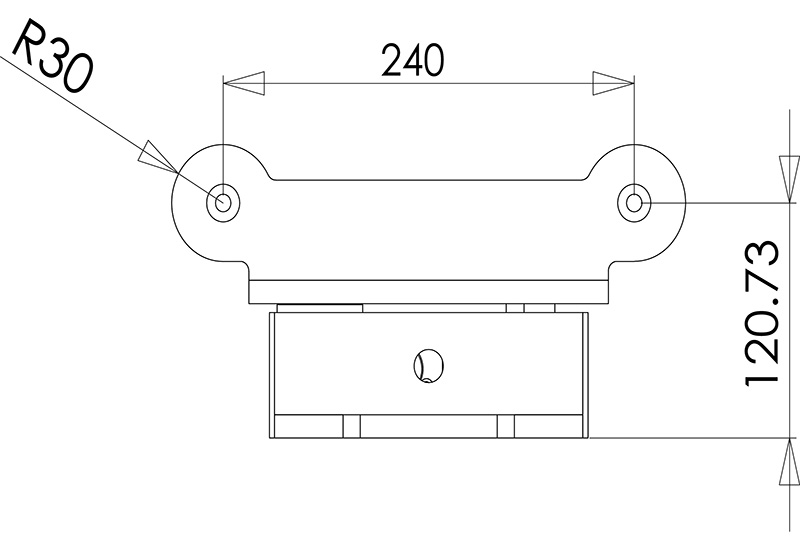

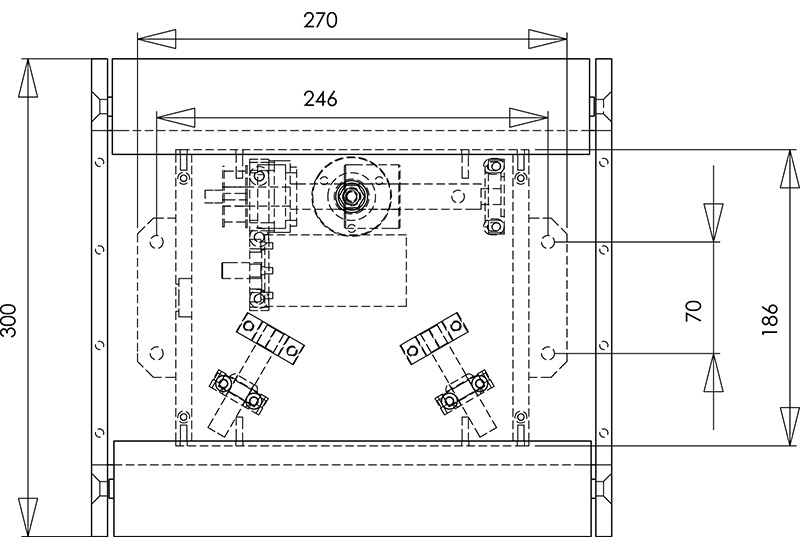

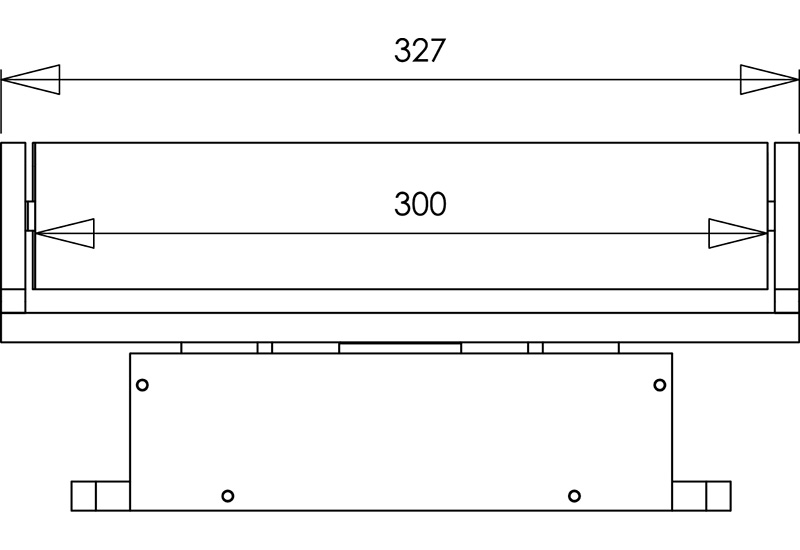

Product Image
Product Range
Product Introduction
The PG-300A, PG-350A and PG-400A to PG-600A models are servo-motor intermediate-guide integrated EPC systems. When web deviation occurs during material travel, the sensor sends feedback to the controller and the system automatically pulls the web back to the correct position. The controller, driver and detector are integrated into one compact unit, helping save machine space and improve installation and commissioning efficiency.
Key Features
- Automatic web correction through sensor feedback to the controller
- Brushless DC servo motor drive
- Integrated controller, driver and detector structure
- Compact installation that helps save machine space
- Designed to improve customer installation and commissioning efficiency

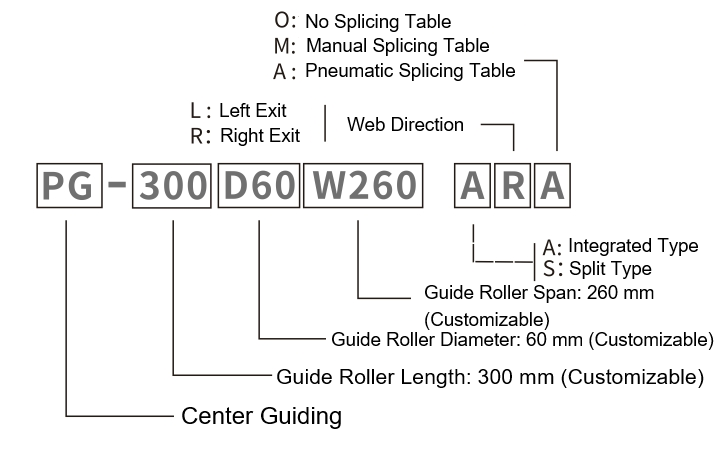

Model Code Reference
Specifications
Unit: mm
| Model | Roller Length A (mm) | Roller Diameter B (mm) | Span C (mm) | Base Length D (mm) | Guide Travel | Max Tension (N) |
|---|---|---|---|---|---|---|
| PG-200A | 200 | 50 | 230 | 255 | ±12° | 300 |
| PG-250A | 250 | 50 | 230 | 255 | ±12° | 300 |
| PG-300A | 300 | 60 | 260 | 300 | ±12° | 300 |
| PG-350A | 350 | 60 | 260 | 350 | ±12° | 300 |
| PG-400A | 400 | 60 | 320 | 410 | ±7° | 500 |
| PG-450A | 450 | 60 | 320 | 460 | ±7° | 500 |
| PG-500A | 500 | 60 | 320 | 510 | ±7° | 500 |
| PG-600A | 600 | 60 | 320 | 610 | ±7° | 500 |

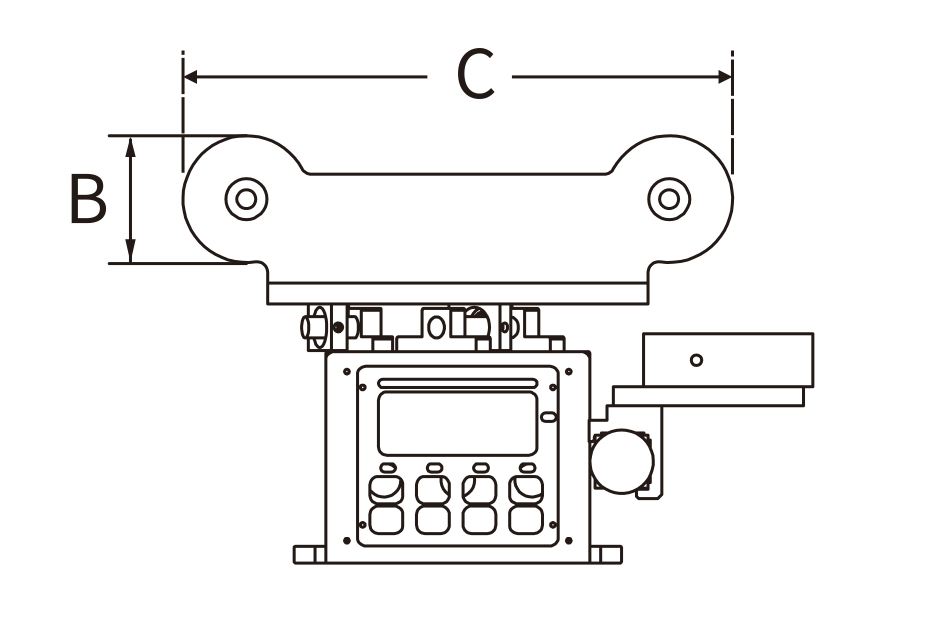

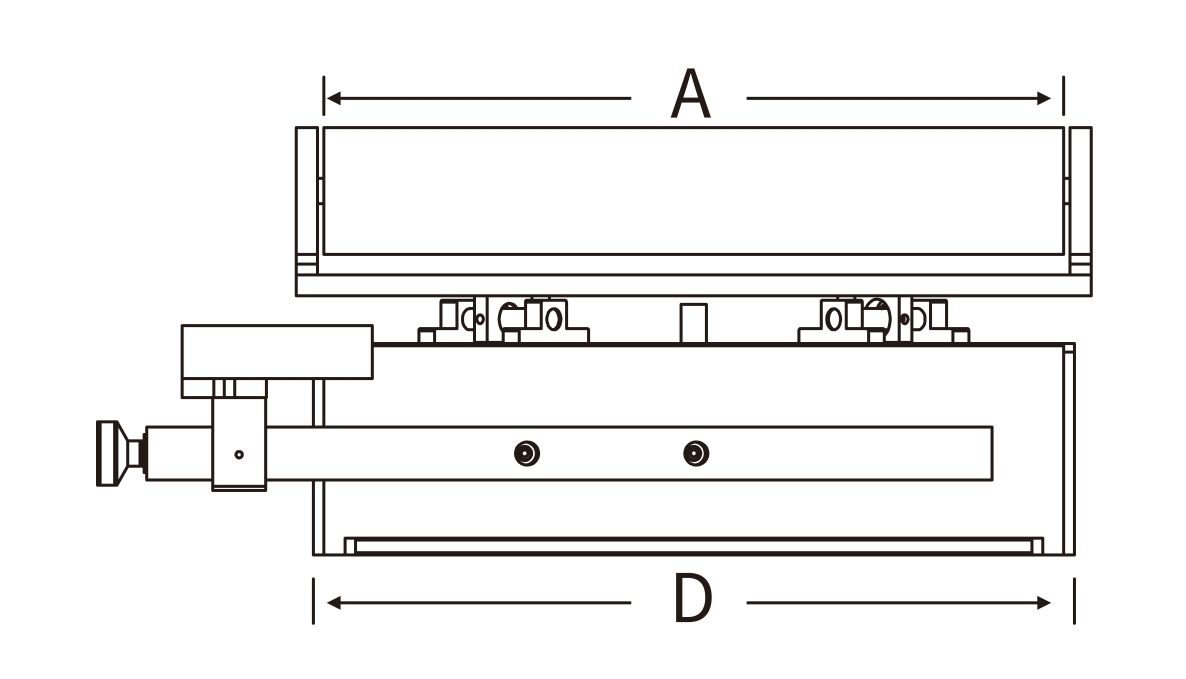

Dimensions Reference
Unit: mm
Product Fit
Typical applications
- Compact integrated EPC units for edge guiding and center guiding systems.
- Used on narrow and mid-width printing, label, film and flexible packaging lines.
- Combines controller, detector, guide rollers and servo correction structure in one assembly.
Compatible components
PG integrated unit quick answers
How do the listed PG models differ?
PG-300A/350A list ±12-degree guide travel and 300 N maximum tension; PG-400A to PG-600A list ±7-degree travel and 500 N maximum tension.
What information is needed to select a PG integrated unit?
Provide web width, roller length and diameter, line speed, web tension and installation space so the model and layout can be checked.
Request PG integrated EPC sizing support
Share your web width, roller length, roller diameter, line speed, web tension and installation space. KRD can recommend a compact EPC unit layout for your machine.
