Which feedback inputs does KTC828A support?
KTC828A accepts single or dual sensor input, including documented 200mV differential, 20mV strain-gauge and dancer-potentiometer modes. Confirm sensor excitation and wiring before selection.
KTC828A
Product Image
Product Introduction
KTC828A is a high-precision, full-digital intelligent automatic tension controller. Working with LX-series tension detectors, it builds a closed-loop system and uses internal PID processing to regulate unwind/rewind tension automatically. It provides 0-24VDC output for magnetic powder clutch/brake and can also output 0-10V signal to drive inverter, servo motor, or other actuators for high-accuracy web tension control across printing, packaging, paper, cable, rubber-plastic, battery and textile lines.
Key Features
- 128x96 graphic LCD with Chinese/English UI
- Fully digital design without adjustable potentiometers, easy calibration and stable measurement
- Supports single/dual sensor input: differential 200mV (5V supply), strain-gauge 20mV (10V supply), and dancer potentiometer mode
- Optional RS485 communication for PLC/PC integration (Modbus)
- No-overshoot PID algorithm for start/stop tension stability
- Dual-shaft switching and acceleration/deceleration control
- Bumpless Auto/Manual switching
- Password protection for parameter safety
- Wide-range switching power input: 165-264VAC, long-term reliable operation
Technical Parameters
Model
KTC828A
Sensor Inputs
Single/Dual channel tension sensor input
Differential Sensor Spec
Input range 200mV, supply 5VDC
Strain Gauge Sensor Spec
Input range 20mV, supply 10VDC
Switch Inputs
3 channels
Analog Inputs
2 channels, 0-10V
Control Contacts
MC1-MC6
Digital Input
NPN proximity switch / encoder, max 15KHz
Measurement Accuracy
±0.2%FS ±1 digit, sampling period 100ms
Control Algorithm
PI (Proportional-Integral)
Main Output
2 channels, 24V/4A, direct drive for magnetic powder clutch/brake
Auxiliary Output
2 channels, 0-10V (or 4-20mA), for inverter/servo/I-P actuator
Alarm Output
Normally-open relay
Communication
RS485, standard Modbus
Dimensions
246(W) x 154(H) x 156.5(D) mm
Power Supply
165-264VAC, 50/60Hz

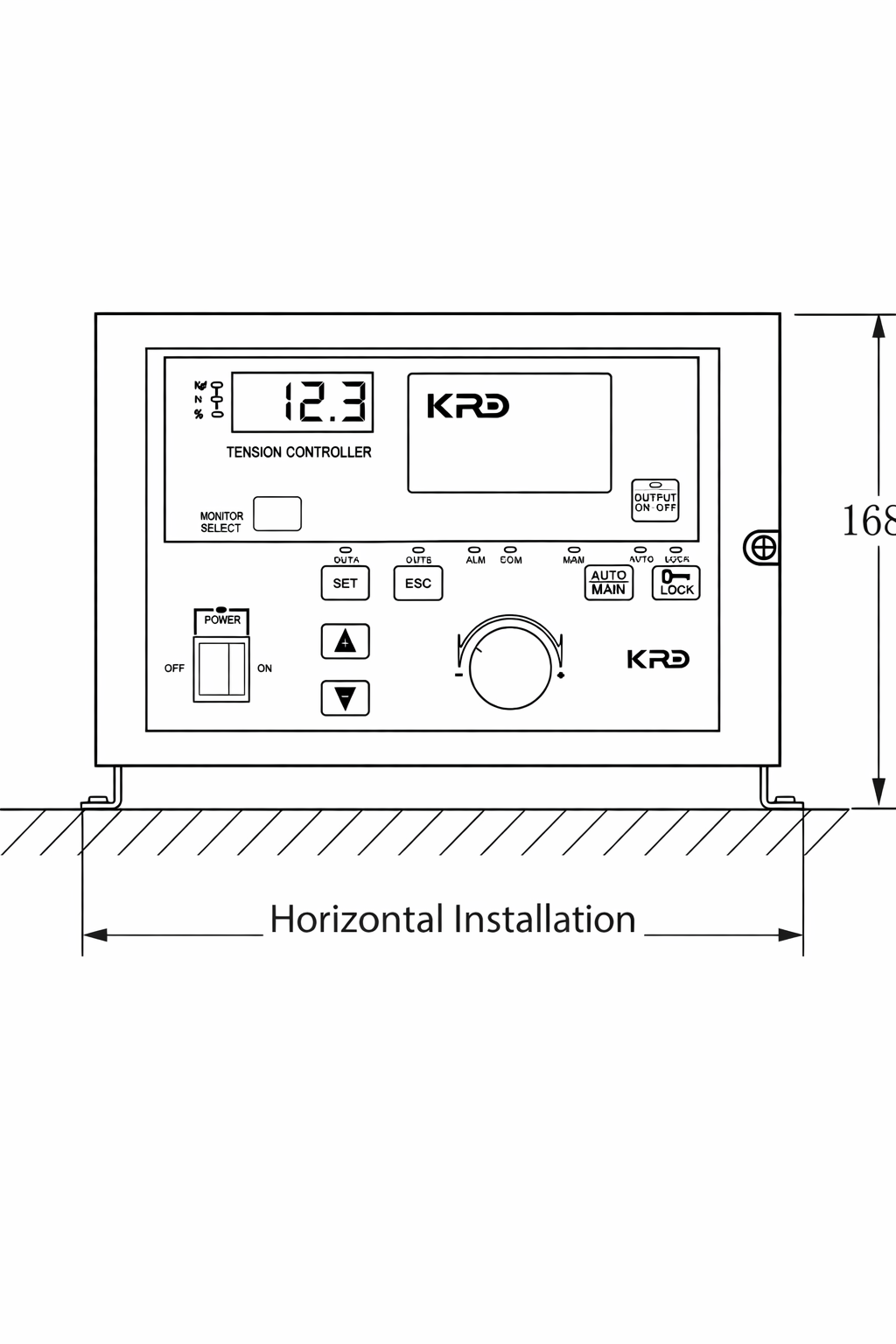

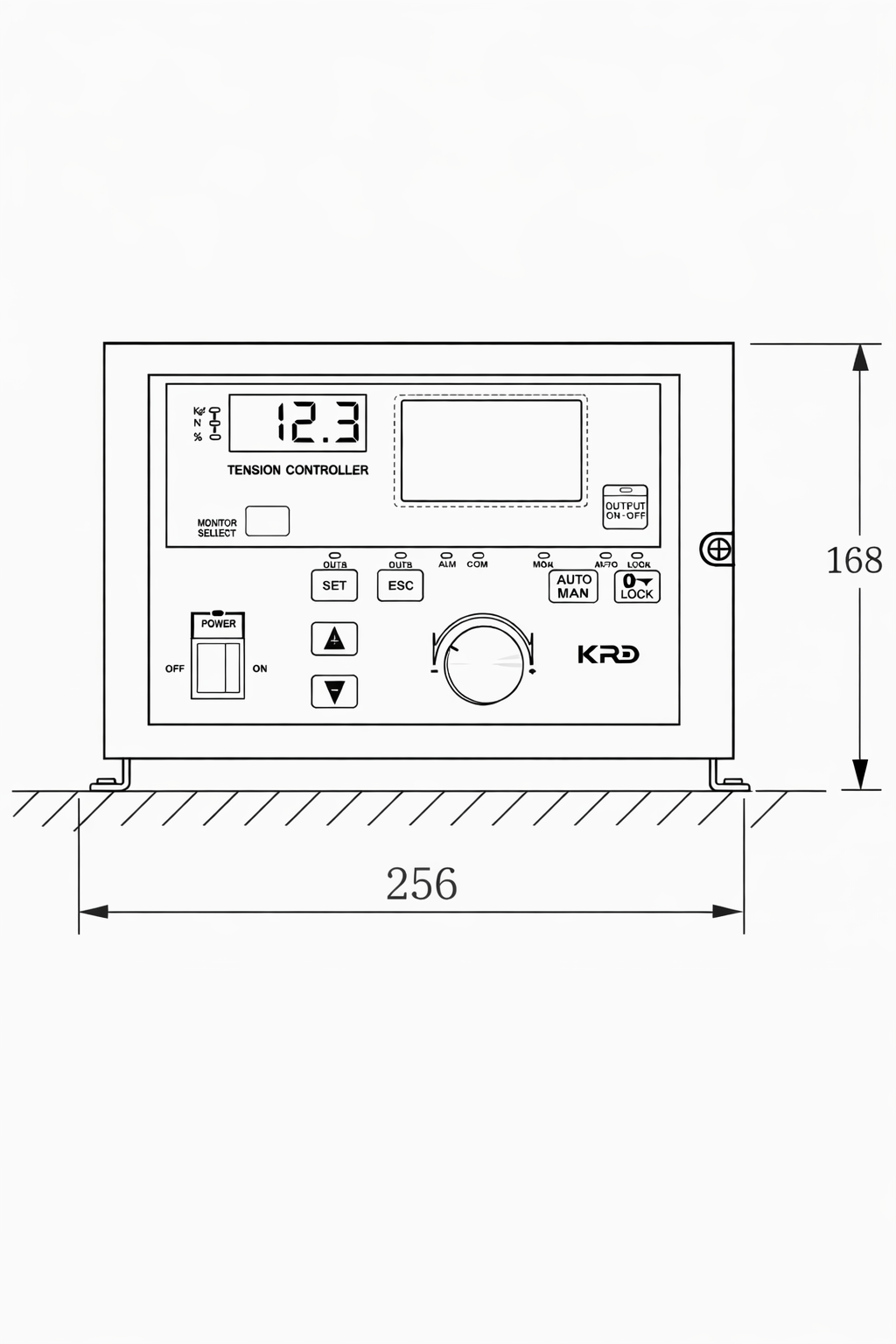

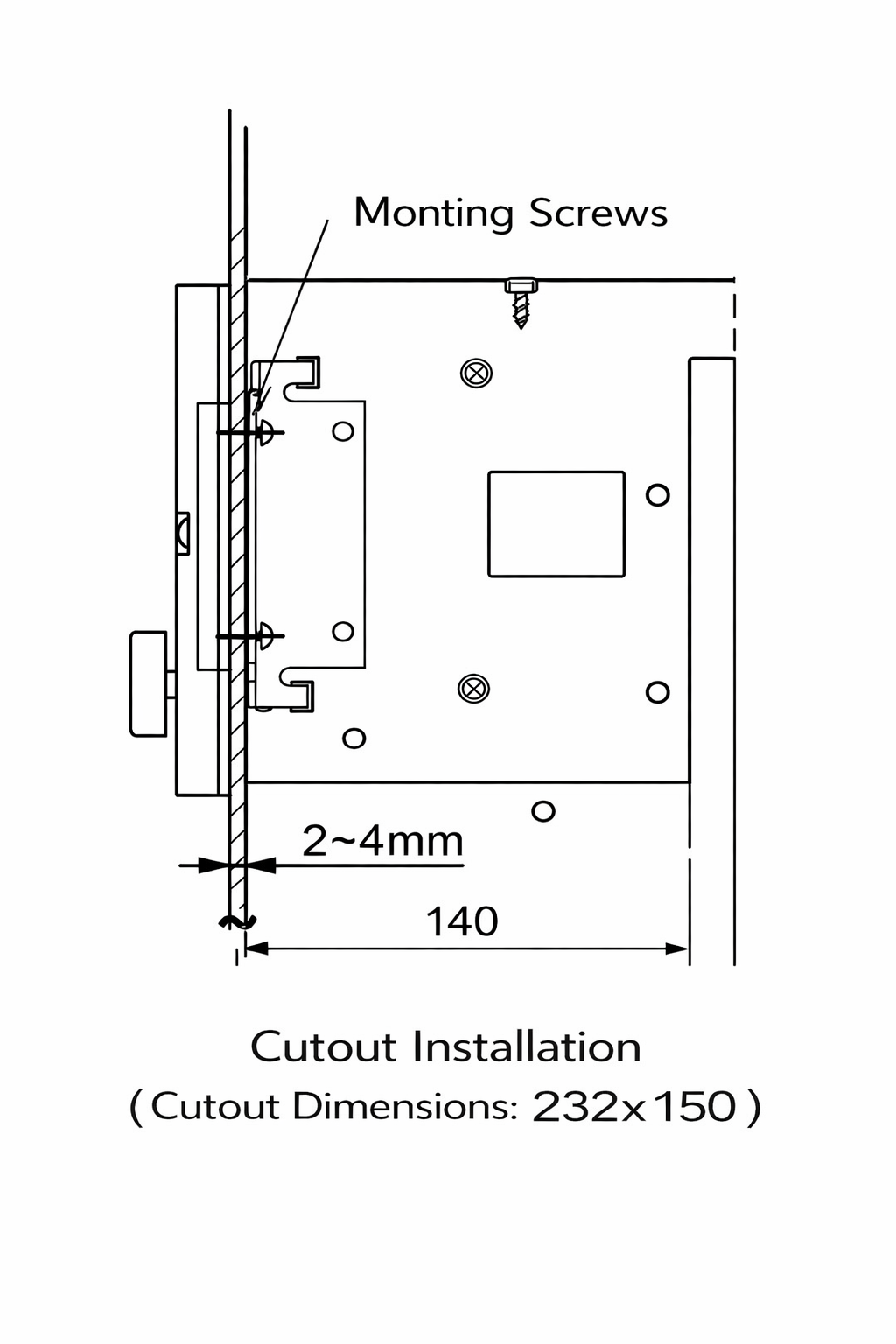

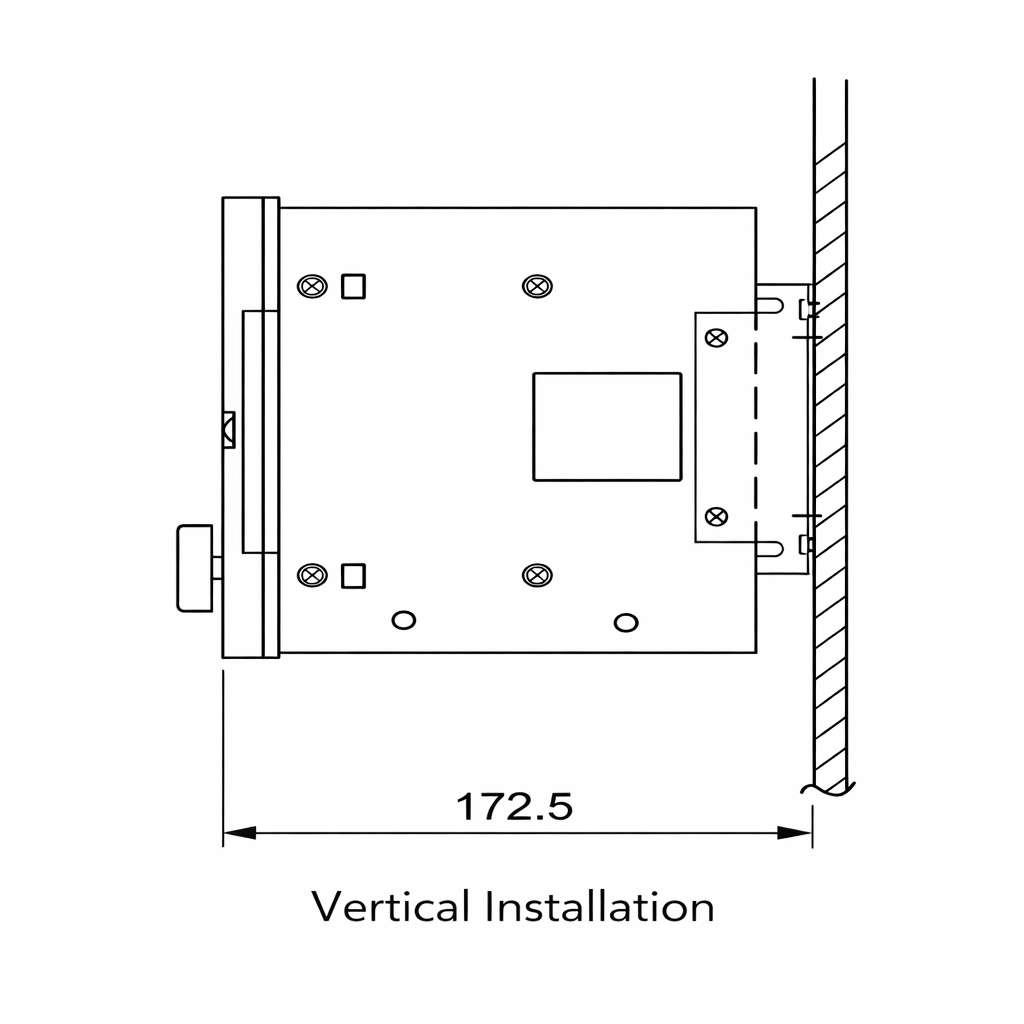

Installation Drawing
Note: All dimensions in this section are in mm.

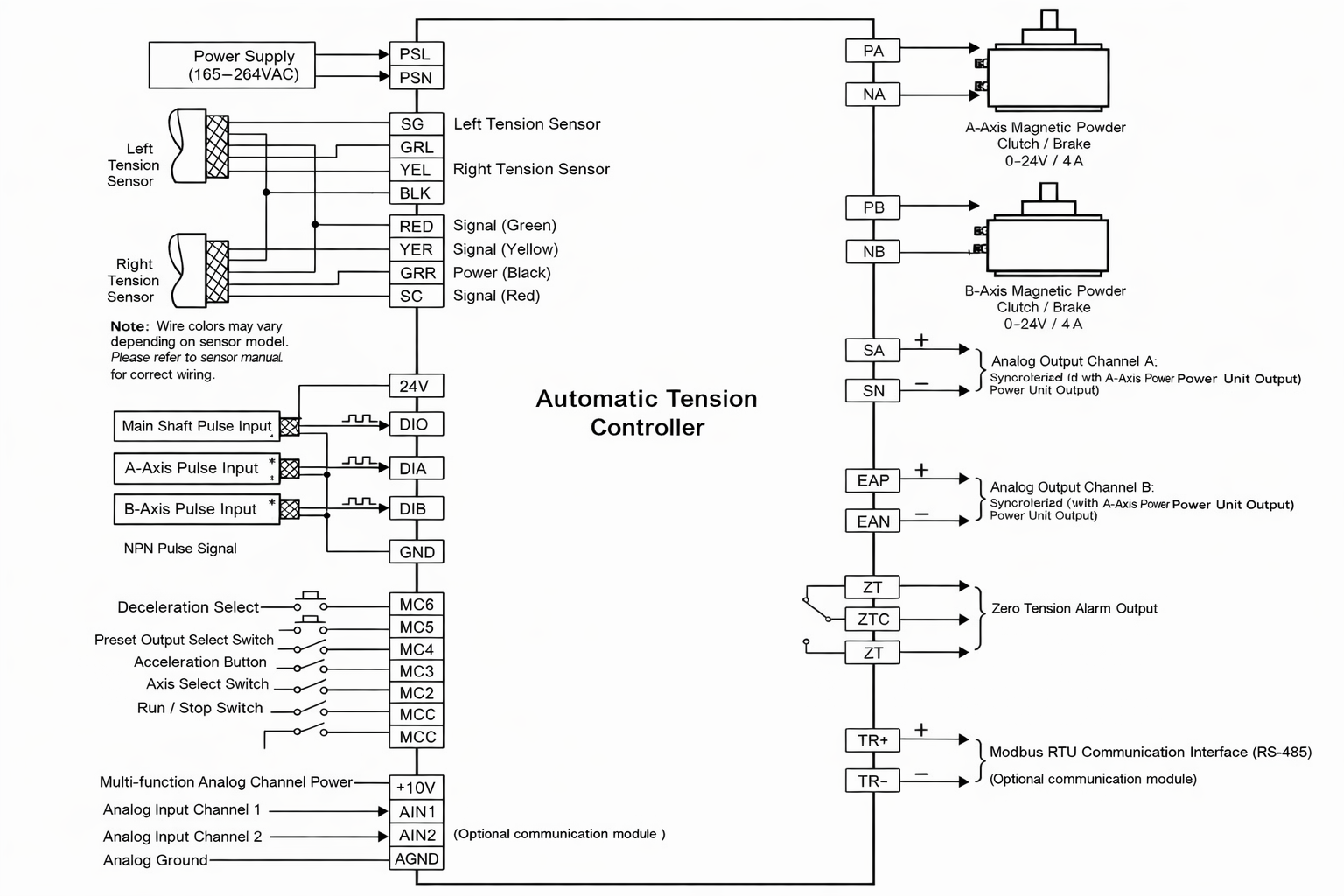

Wiring Diagram
Product Fit
Typical applications
- Closed-loop tension control for unwind, process and rewind sections.
- Used on printing, coating, laminating, slitting and roll-to-roll converting lines.
- Works with paper, film, foil, label stock and battery electrode webs.
Compatible components
KTC828A quick answers
Which actuators or drives can KTC828A command?
Two 24V/4A outputs are listed for magnetic powder brakes or clutches. Two auxiliary 0-10V or 4-20mA outputs can command a drive or I-P actuator. Confirm power and scaling.
Does KTC828A support PLC communication?
Optional RS485 communication with standard Modbus is listed for PLC or PC integration. Confirm that the ordered hardware includes the option and verify the communication settings.
Request KTC828A tension control support
Share your web width, tension range, roll diameter, line speed and brake, clutch or drive interface. KRD can recommend a controller, sensor and actuator combination for your machine.
