Start with your roller mounting arrangement, then match the rated load and electrical signal to the machine.
Choose the Mounting Style
Use the installation drawing for each series to confirm shaft dimensions, mounting space and load direction before ordering.

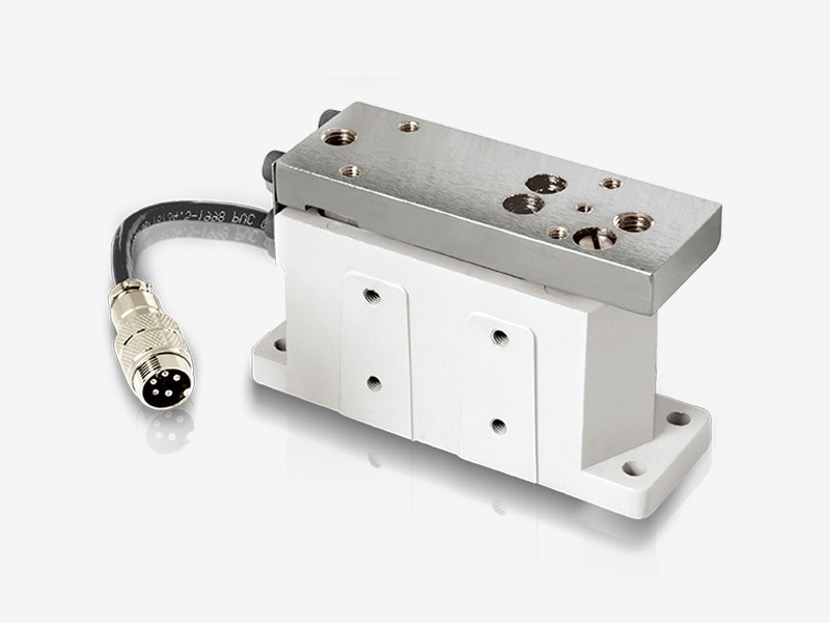

Cantilever mounting
For single-side cantilever roller machines. Start here when the roller is supported from one side.
Check the roller connection, web path and rated load. Confirm the listed 10VDC excitation and 2mV/V signal with your controller or amplifier.
View Product Details

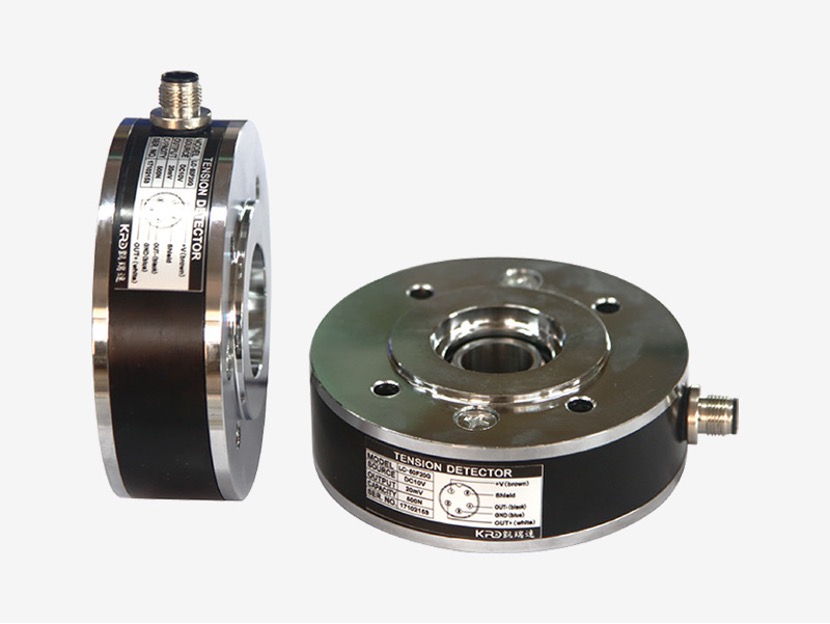

Shaft-through mounting
For idler or live roller arrangements using a shaft-through detector. The series supports machine-frame or base-plate mounting.
Check shaft fit, fixing dimensions and load direction. Confirm the listed 10VDC excitation and 2mV/V signal before connecting.
View Product Details
Pillow-block mounting
For a bearing-housing mounting arrangement. Review the base dimensions and bearing-housing fit against the installation drawing.
Select the rated-load and output version together. The product page lists 20mV and 200mV options; confirm the matching supply and input interface.
View Product DetailsBefore You Select
Share the target tension range, roller weight, web wrap and load direction. Rated sensor load must be checked against the forces at the measuring roller.
Check shaft diameter, fixing holes, bearing arrangement and available space. A machine photo or drawing helps identify which mounting style fits.
Confirm excitation voltage, output type, wiring and the receiving controller or amplifier. Select the complete signal chain before connecting the sensor.
Tell us what you know about your material, roller layout and existing controller. Incomplete technical details are welcome. For a replacement, include the current sensor model if available.
