Which feedback signals does AT-X8 accept?
AT-X8 accepts two tension-sensor channels with 20mV or 200mV signals. The left channel, right channel or their sum can be selected, with zero and full-scale calibration.
AT-X8
Product Image
Product Introduction
AT-X8 is a fully digital automatic tension controller that forms a PI closed-loop control system with tension sensors. It supports unwind and rewind applications for film, foil, precision wire, nonwoven materials, printing and rewinding lines. Configurable analog outputs connect to inverter or servo-drive control inputs, while dedicated magnetic-powder outputs control clutches or brakes. Taper tension, A/B-axis switching and RS485 Modbus RTU support integration into roll-to-roll equipment.
Key Features
- 32-bit CPU with a color HMI, operating-status monitoring and parameter menus
- PI closed-loop tension control with adjustable filtering, proportional/integral parameters and deadband
- Left, right or summed tension-sensor feedback, with zero and full-scale calibration
- Two configurable 0-10V outputs for inverter or servo-drive interfaces, plus two magnetic-powder drive channels
- Taper coefficient adjustable from 0.00 to 1.00, with diameter acquisition by thickness accumulation, speed ratio or a sensor
- A/B-axis switching or synchronized output, with configurable pre-drive and switching delays
- Configurable start/stop logic, two alarm relays and six switching-signal inputs
- RS485 Modbus RTU, simplified/traditional Chinese and English interface options, kg or N units, and password-protected key lock
Technical Parameters
Model
AT-X8
Control Mode
PI closed-loop control
Power Supply
165-264VAC, 50/60Hz
Tension Sensor Inputs
2 channels, 20mV / 200mV, 16-bit. Select left, right or left + right.
Sensor Excitation
5V / 10V; match the selected sensor type
Analog Inputs
2 configurable channels, 0-10V, 12-bit
Analog Outputs
2 configurable channels, 0-10V, 14-bit
Magnetic-Powder Outputs
2 channels, 0-24VDC / 4A, 14-bit
Relay Outputs
2 configurable normally-open alarm channels. Confirm contact voltage/current rating before connection.
Switching Inputs
6 channels (MC1-MC6)
Pulse Inputs
Main shaft, A-axis and B-axis inputs; maximum 15kHz
Output Response Time
20ms
Control Accuracy
±0.5% of full scale (manual specification)
Communication
RS485 Modbus RTU slave; 4800 / 9600 / 19200bps; no or even parity

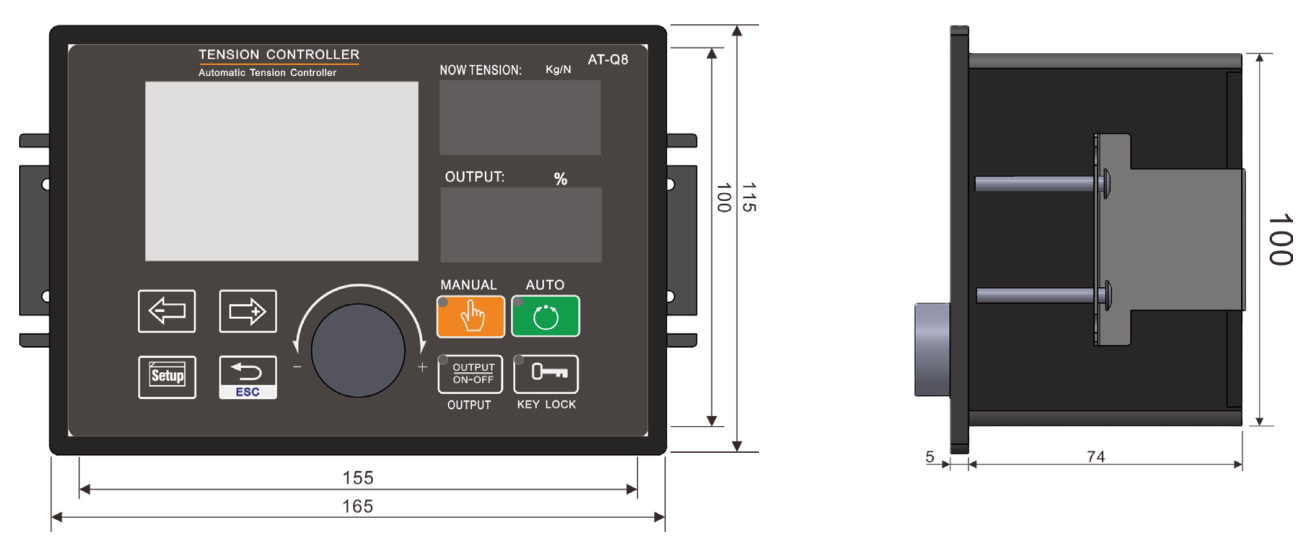

Dimensions
Front panel: 165(W) × 115(H) mm. Rear housing: 100mm high, 74mm deep (see drawing).

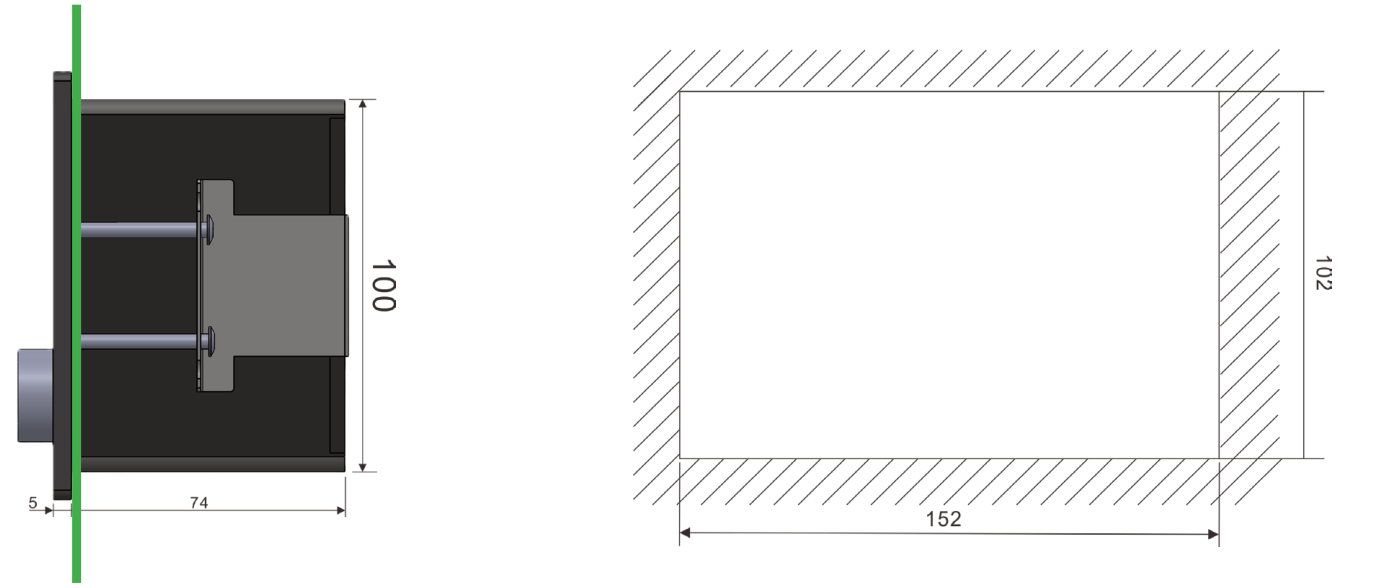

Panel Cutout
152(W) × 102(H) mm
Installation Drawing
Dimensions are in mm. The manual recommends panel cutout mounting. Allow clearance for the front control knob, terminals and wiring.

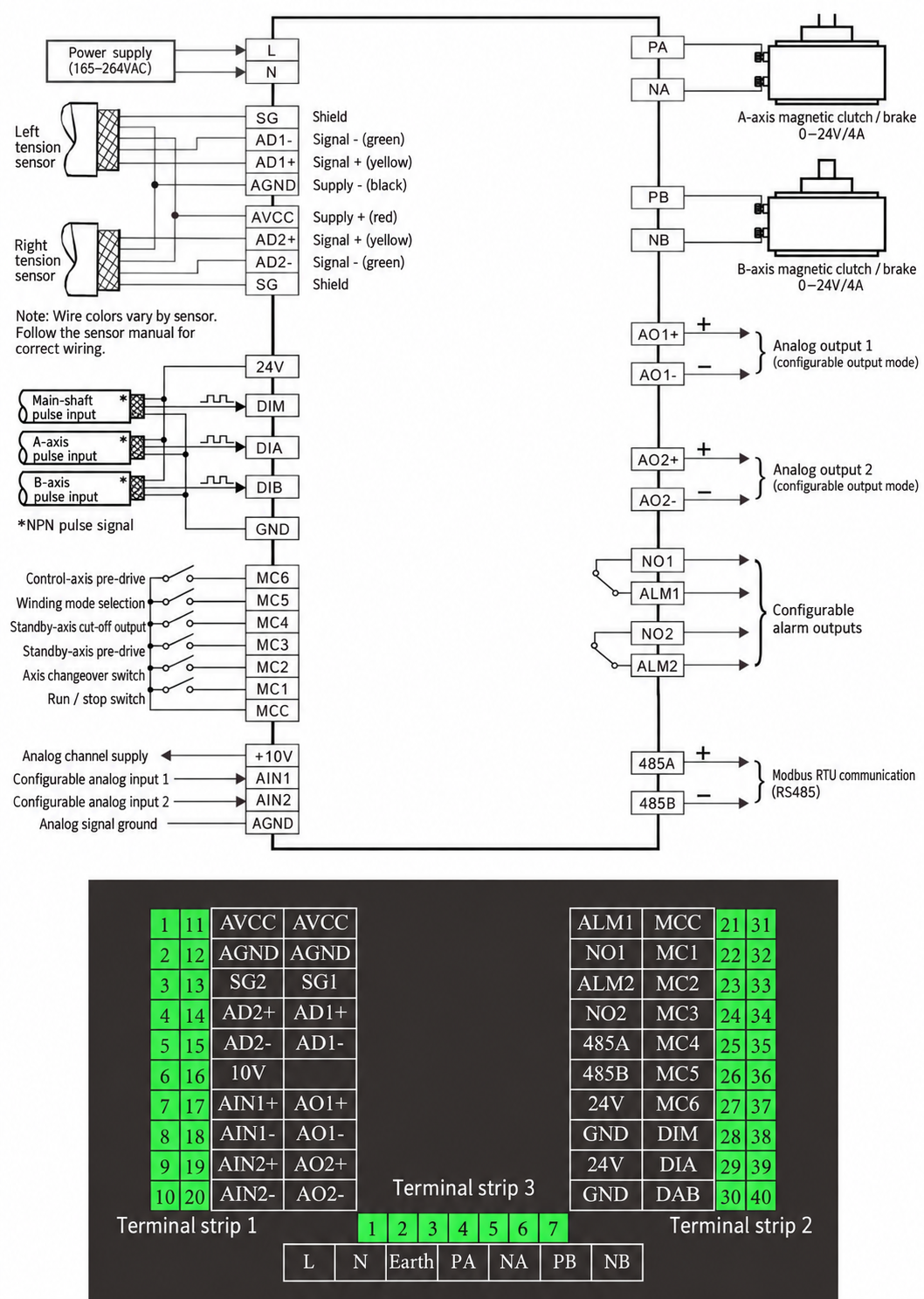

Wiring Diagram
Keep signal wiring away from mains and motor-power wiring. Never connect mains voltage to signal terminals. Confirm relay-contact voltage and current ratings before electrical connection.
AT-X8 quick answers
How does AT-X8 support taper tension and roll changes?
AT-X8 provides an adjustable taper coefficient and roll-diameter acquisition by thickness accumulation, speed ratio or an external sensor. A/B axes support switching or synchronized output, with configurable pre-drive and switching timing.
Can AT-X8 communicate with a PLC?
AT-X8 provides RS485 Modbus RTU as a slave, with selectable 4800, 9600 or 19200bps and no or even parity. Match the configured device address and register mapping before integration.
